Question

A 15kg block rests on the surface of a plane inclined at an angle of 30 degrees to the horizontal. A light inextensible string passing over a small, smooth pulley at the top of the plane connects the block to another 13kg block hanging freely. The coefficient of kinetic friction between the 15kg block and the plane is 0.25. Find the acceleration of the blocks.

Answer 1

Answer on Question #55021-Physics-Quantum Mechanics

A $15\mathrm{kg}$ block rests on the surface of a plane inclined at an of 30 degrees to the horizontal. A light inextensible string passing over a small, smooth pulley at the top of the plane connects the block to another $13\mathrm{kg}$ block hanging freely. The coefficient of kinetic friction between the $15\mathrm{kg}$ block and the plane is 0.25. Find the acceleration of the blocks.

Solution

Given:

$$m = 15 kg, M = 13 kg, \theta = 30{}^{\circ}, \mu_{k} = 0.25.$$

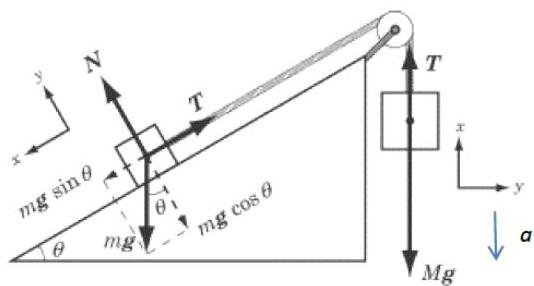

First, let's determine the net force acting on each of the masses. Applying Newton's Second Law we get:

for mass $M\colon Mg - T = Ma$

for mass $m\colon T - mg\sin \theta -\mu_kN = ma$

Adding these two equations together, we find that

$$M g - T + T - m g \sin \theta - \mu_{k} N = M a + m a$$ $$M g - m g \sin \theta - \mu_{k} N = a (M + m)$$

The friction force

$$\mu_{k} N = \mu k m g \cos \theta$$

Thus,

$$a = \frac {g (M - m \sin \theta - \mu_{k} m \cos \theta)}{(M + m)}$$ $$a = \frac {9.81 \cdot (13 - 15 \cdot \sin 30{}^{\circ} - 0.25 \cdot 15 \cdot \cos 30{}^{\circ})}{(13 + 15)} = 0.79 \frac {m}{s^{2}}.$$

Answer: $0.79\frac{m}{s^2}$
