Answer to Question #204703 in Electric Circuits for umme habiba sumi

Question

draw a magnetization curve of three types of magnetic materials and hence narrate the curves.

Answer 1

To study magnetic properties of magnetic materials, the material is usually placed in a uniform magnetic field and then the magnetic field is varied. There are three major kinds of magnetic behaviour:



• Diamagnetic materials



These materials are barely magnetized when placed in a magnetic field. Magnetic dipoles in these substances tend to align in opposition to the applied field. In effect, they produce an internal magnetic field that opposes the applied field and the substance tends to repel the external field around it.

This opposing field disappears as soon as the external field is removed.

Ex: Gold, water, mercury and even animals!



• Paramagnetic materials



In these materials the magnetic dipoles in the Magnetic Materials tend to align along the applied magnetic field and thus reinforcing the applied magnetic field. Such substances are attracted by a magnet if it applies a sufficiently strong field. It must be noted that such materials are still feeble magnetized and the magnetization disappears as soon as the external field is removed. The magnetization (M) of such materials was discovered by Madam Curie and is dependent on the external magnetic field (B) and temperature T as:

$M=\frac{CB}{T}$

Where C= Curie Constant

Ex: Liquid oxygen, sodium, platinum, salts of iron and nickel.



• Ferromagnetic materials



We are most familiar with these materials as they exhibit the strongest magnetic behaviour. Magnetic dipoles in these materials are arranged into domains where the arrangements of individual magnetic dipoles are essentially perfect that can produce strong magnetic fields. Normally, these domains are usually randomly arranged and thus the magnetic field of each domain is cancelled by another and the entire material does not show any magnetic behaviour.

However when an external field is applied, the domains reorient themselves to reinforce the external field and produce a strong internal magnetic field that is along the external field. Upon, removal of the external field, most of the domains stay put and continues to be aligned in the direction of the (erstwhile) magnetic field. Thus, the magnetic field of the Magnetic Materials persists even when the external field disappears. This property is used to produce Permanent magnets that we use every day. Iron, cobalt, nickel, neodymium and their alloys are usually highly ferromagnetic and are used to make permanent magnets.

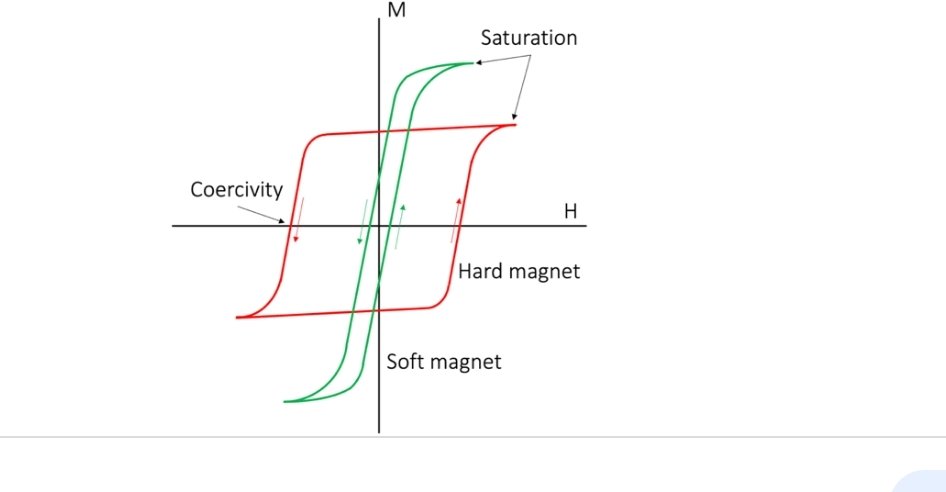

M -H curve

Soft magnet narrow

Hard magnetic Brod

According to curve
