The power (in watts) from an engine is represented by the equation: π=100π‘1.4+6π‘ where t is the time in seconds. i. Draw the graph that represents power against time for this engine. ii. Show the area on the graph which represents the energy converted between 5 s and 15 s. iii. Show, using summation, how you would gain an approximation for the energy. iv. Using integration, evaluate the exact energy between 5 s and 15 s.
Solution

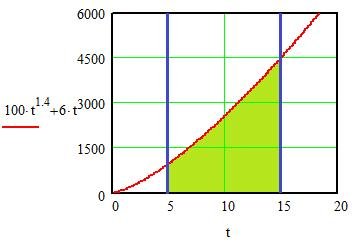

i,ii. Graph for power P(t) = 100π‘1.4+6π‘ with the area on the graph which represents the energy converted between 5s and 15s are shown below
iii. If βt β some small time subinterval, the value of this area may be calculated approximately as
where N β number of subintervals of [5,15], tn = 5+n*βt, βt = (15-5)/N.
The value of this sum is S = 29900.85 for N = 5 or S = 28094.41 for N = 10.
iv. The exact energy between 5s and 15s is the integral E = β«515P(t)dt = β«515(100π‘1.4+6π‘)dt = (100π‘2.4/2.4+3π‘2)|515 = 28370.41-2057.97 = 26312.44
