Answer to Question #331608 in Mechanical Engineering for NITHIN

Question #331608

In a porter governor the mass of the central load is 18 kg and the mass of each ball is 2kg. the top arms (250+X) mm while the bottom arms are (300+X) mm long. The friction of the sleeve is 20 N. If the top arms make 45 degree with the axis of rotation in the equilibrium position, find the range of the speed of the governor in that position


1
Expert's answer
2022-04-21T16:07:04-0400

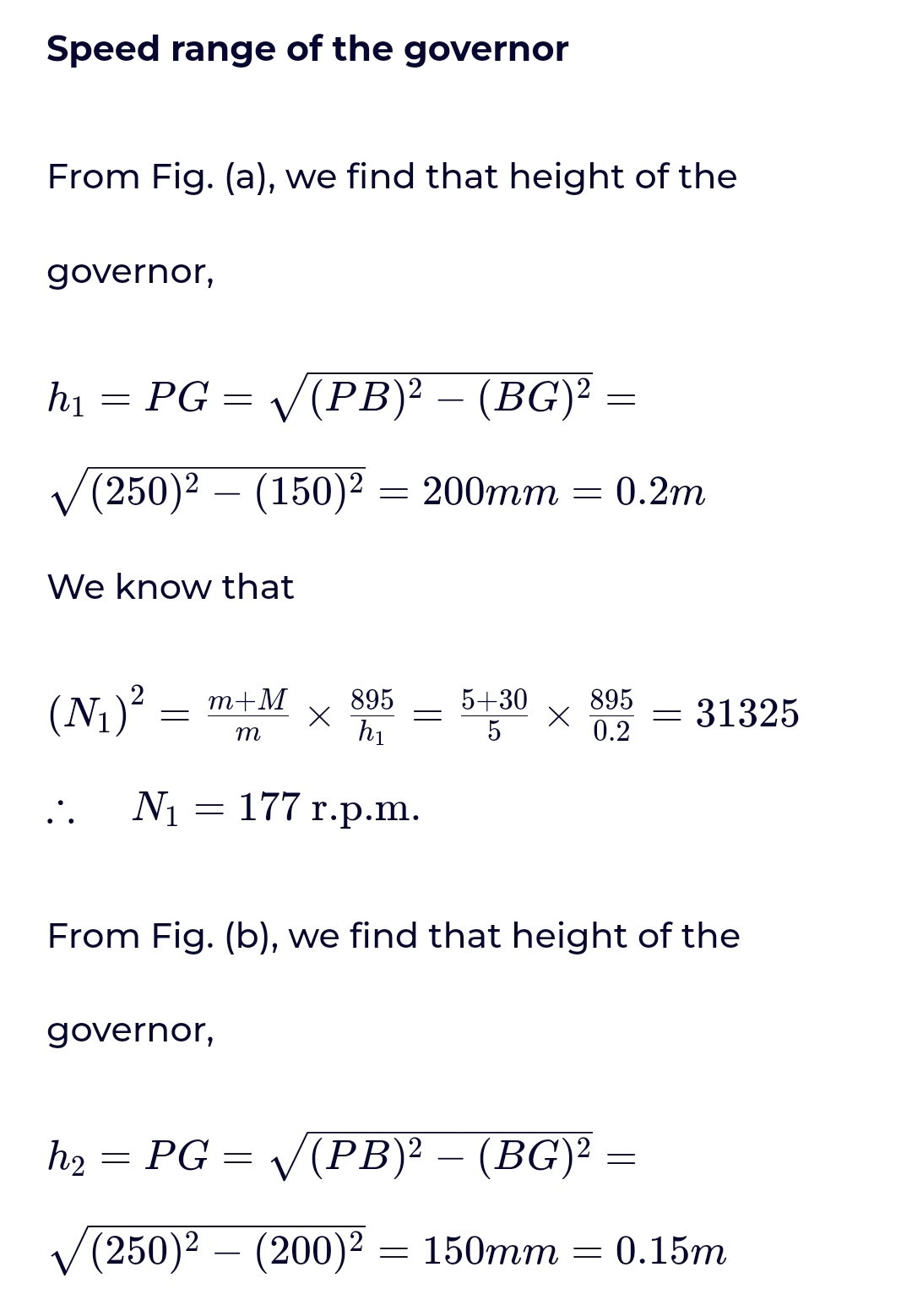

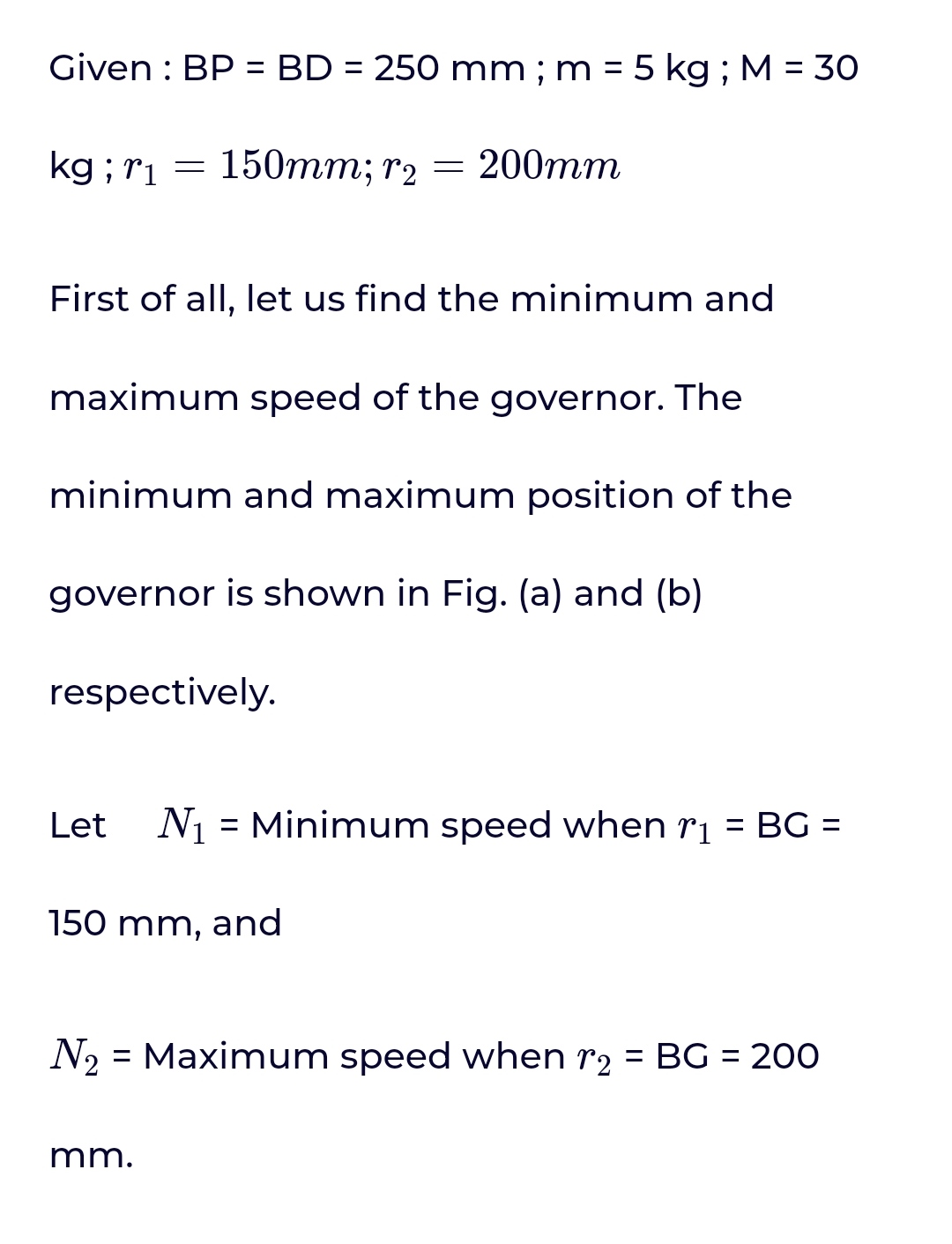

The answer to your question is provided in the image:
