Answer to Question #331493 in Mechanical Engineering for Harsh

Question #331493

The thin-walled single cell beam shown in Figure has been idealized into a combination of


direct stress carrying booms and shear stress only carrying walls. If the section supports a vertical


shear load of 10 kN acting in a vertical plane through booms 3 and 6, calculate the distribution of


direct stress around the section.

1
Expert's answer
2022-04-21T12:40:06-0400

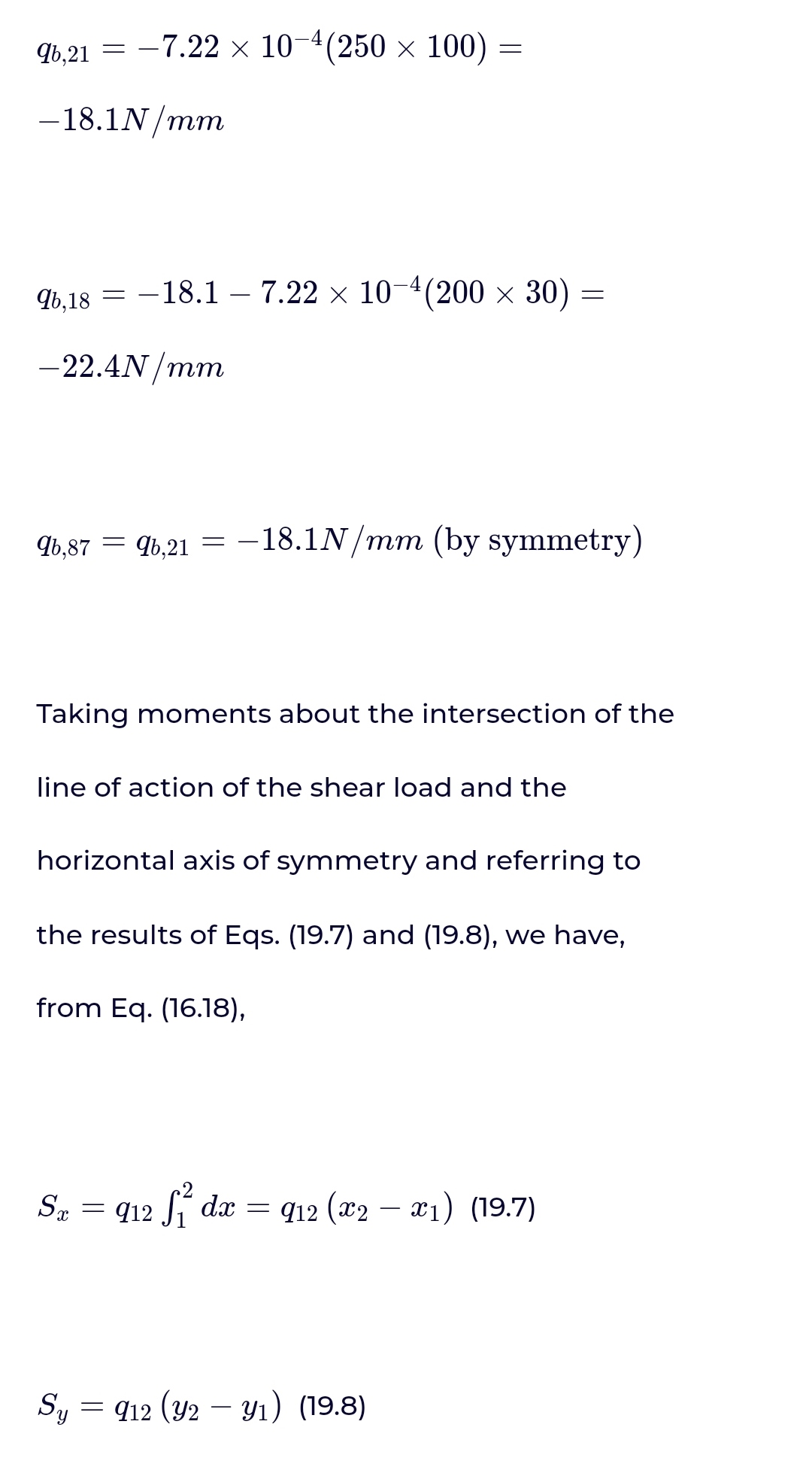

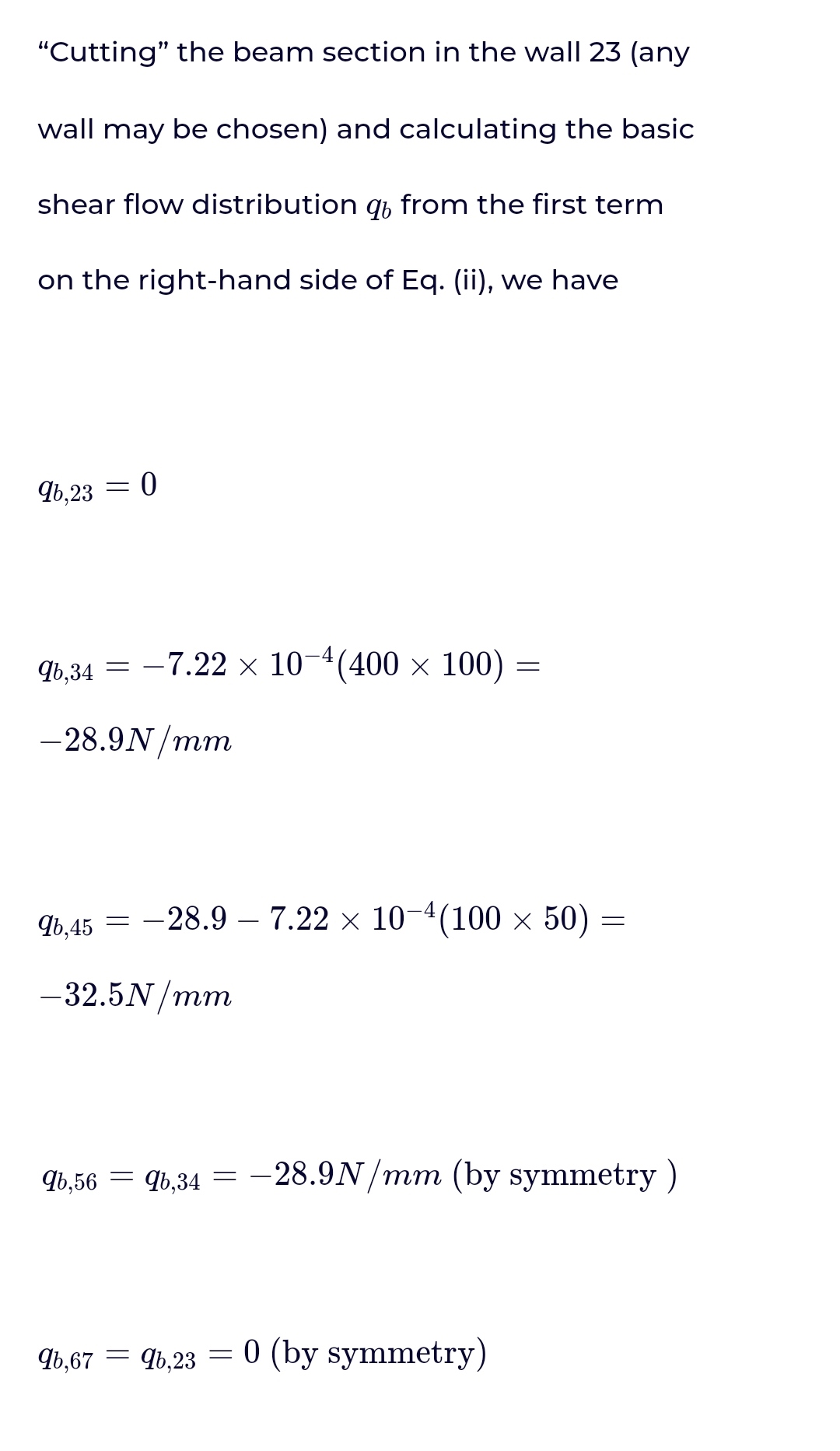

The answer to your question is provided in the image:
