Answer to Question #317850 in Mechanical Engineering for James GONO
he engine mechanism shown in Fig. 8.38 has crank OB = 50 mm and length of connecting rod A B = 225 mm. The centre of gravity of the rod is at G which is 75 mm from B. The engine speed is 200r.p.m. For the position shown, in which OB is turned 45° from O A, Find 1. the velocity of G and the angular velocity of A B, and 2. the acceleration of G and angular acceleration of A B.

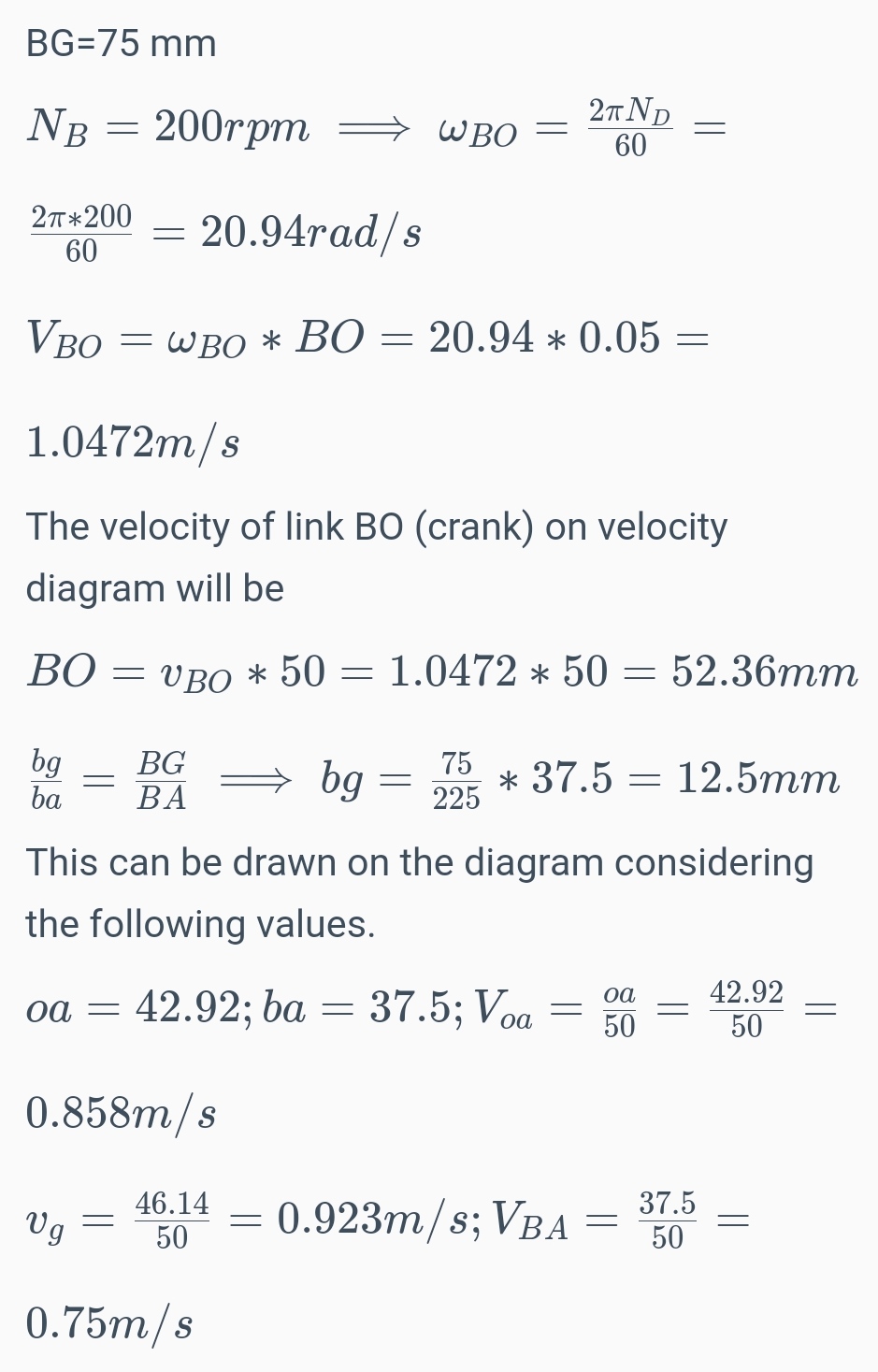

The answer to your question is provided in the image:
-
