Question #282320

The boom in the figure supports a load W = 1400 lb. Compute the forces in the cables AE and BD and also the components exerted by the ball and socket joint C.



Answers: AE = 512 lb; BD = 878 lb; CX = -250 lb; CY = 600 lb; CZ = 800 lb

Expert's answer

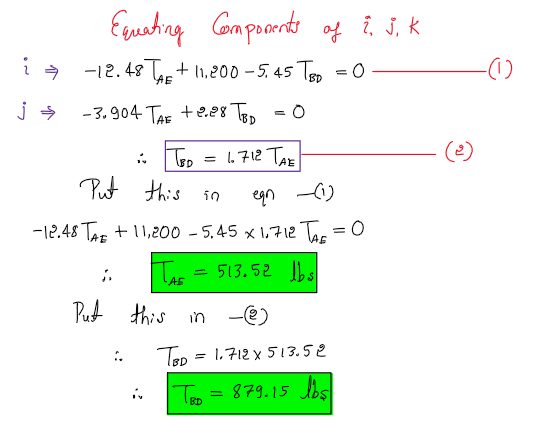

Answer with diagram and tables are given below:
