Answer to Question #216751 in C++ for Musenga sichona

Question

1. With aid of a diagram, explain the stages the CPU goes through as it executes a

program. [25 marks]

2. Give a brief account on the technology used in Flash memory implementation [25

marks]

3. Explain the start-up process of a computer clearly indicating the purpose of the POST,

BIOS and CMOS. [25 marks].

4. With aid of a diagram, give a brief explanation on the type of busses available on

modern computer systems and the purpose of the North Bridge and South Bridge.

Your diagram should clearly show where the bridges are and what connects them. [25

Answer 1

We know that CPU is responsible for exicution of any kind of process running inside the system.

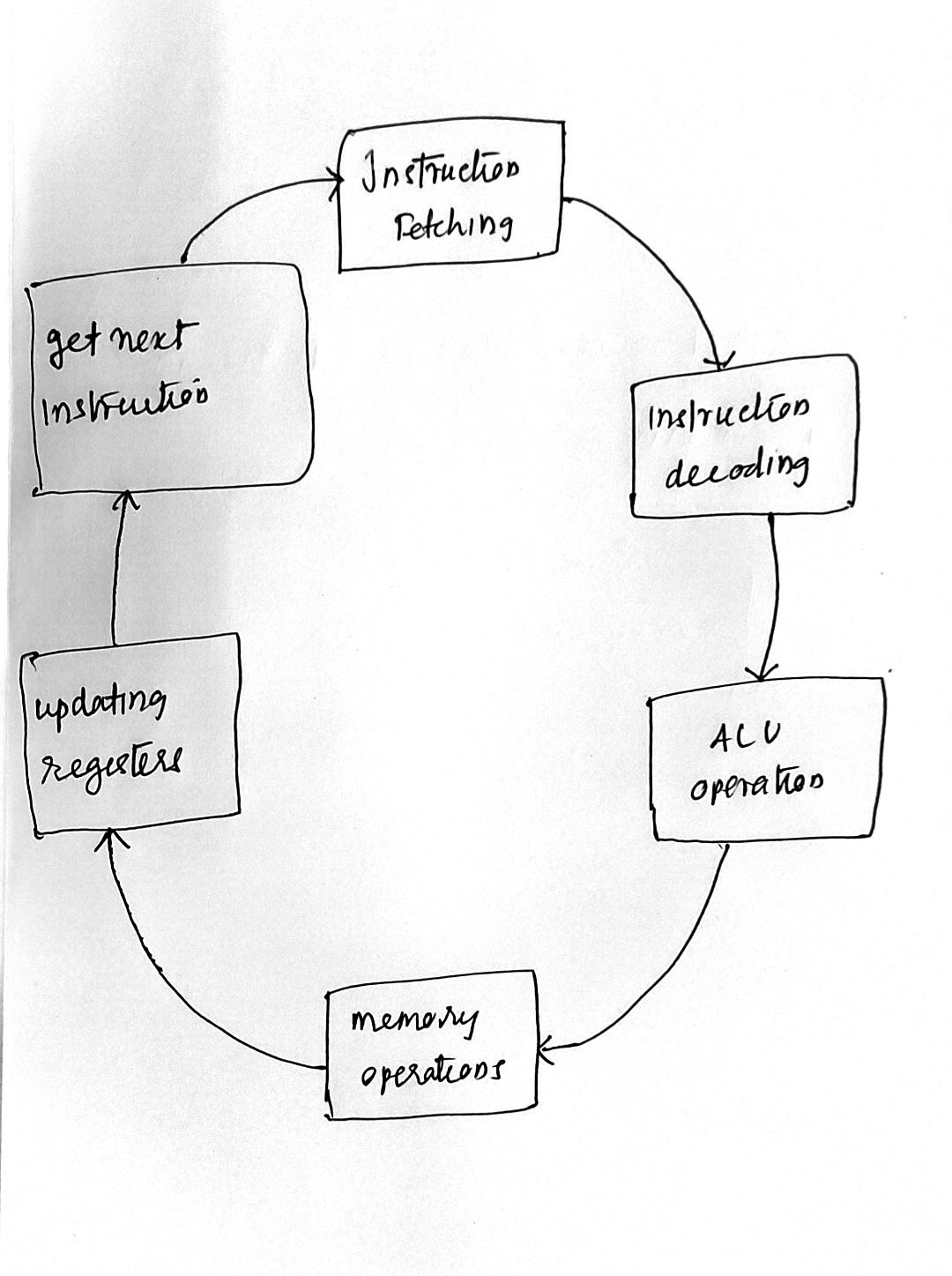

The diagram is given below.

As by the diagram the main steps followed by the cpu is

• Instruction fetching from main memory :instruction details are stored at program counter are passed to cpu Inorder to exicute.
• Instruction decoding :the process are in encoded format, which is decoded by the cpu Inorder to start the execution.
• Process exicution by performing ALUALU operation :after the decoding process the cpu will execute the process.
• Perform memory operations:each process needs different kinds of memory operations like load and store. Which is done by the cpu.
• Updating the respective register contents:after the alu perfomans the cpu will load the results into their respective register memories.
• update the program counter for next instruction
