Answer to Question #90192 in Computer Networks for Vaibhavi Desai

Question

1. Explain how network adaptors and protocols are checked?

Answer 1

Check of network adapters and protocols

If you do use an operating system of the Windows family open a command line as the administrator, using a combination of the keys "Windows + R" and enter into the field of the command line "cmd".

Or press a combination of the keys "Windows + X" and choose the section "Command Line (Administrator)" in a pop-up menu.

Ipconfig command

It is intended for information output about the IP setting up the protocol.

Using:

ipconfig [/? | /all | /release [adapter] | /renew [adapter] | /flushdns | /displaydns /registerdns | /showclassid adapter | /setclassid adapter [install_code_of_class_dhcp] ]

Where:

Adapter  full name or name, contain substitutive signs "*" and "?" (* – any quantity of signs, ? – one any sign).

See examples keys:

Only the IP address, a mask of a subnet and a standard lock for each connected adapter for which the binding with TCP/IP is executed is by default displayed. For keys /release and /renew if the adapter name is not entered, then the IP address given for all adapters for which there are bindings with TCP/IP will be released or updated. For SetClassID key if the code of a class (ID) is not specified, then the

existing code of a class will be removed.

 Example of a conclusion of summary of the IP address: ipconfig

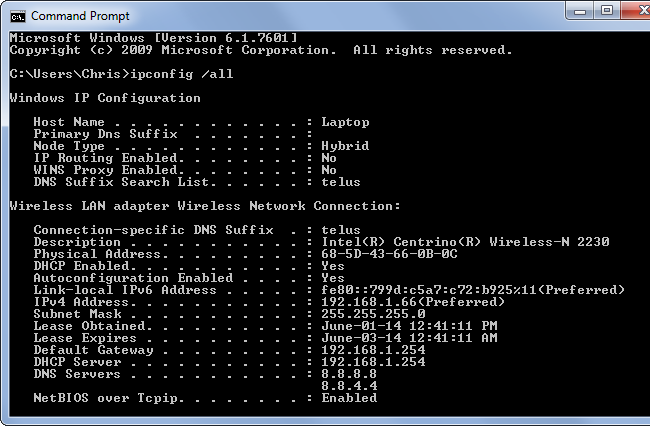

Conclusion of full information: ipconfig /all

Release all matching connections: ipconfig /release

Very often there is a need to keep or transfer information issued by the ipconfig command for receiving a consultation. In this case, it is necessary to use the standard mechanism of a conclusion of the results of the work of command in the text file. For this purpose, it is necessary to give the command with a file name where information will be output. In this case, it is necessary to give the command in a command line



ipconfig /all >C:\ipcfg.txt

After the implementation of this command in the root folder of a disk C: the ipcfg.txt file (it is possible to enter a name of the file any), in which all information issued by command is written down will be created. This file can be checked a usual text editor, to attach to the message or to copy its contents in an e-mail or a post on a forum.
