Answer to Question #326284 in Mechanical Engineering for NITHIN

Question

In an ideal constant volume cycle, the pressure and temperature at the beginning of Compressions are 97 kN/m2 and 40°C, respectively. The compression ratio is 7: 1. The heat supplied during the cycle is 1200 kJ/kg of working fluid. Determine (a) the maximum temperature attained in the cycle, (b) the thermal efficiency of the cycle, and (c) the work done during the cycle/kg of working fluid. Assume ɤ = 1.4 and Cv, = 0.718 kJ/kg K

Answer 1

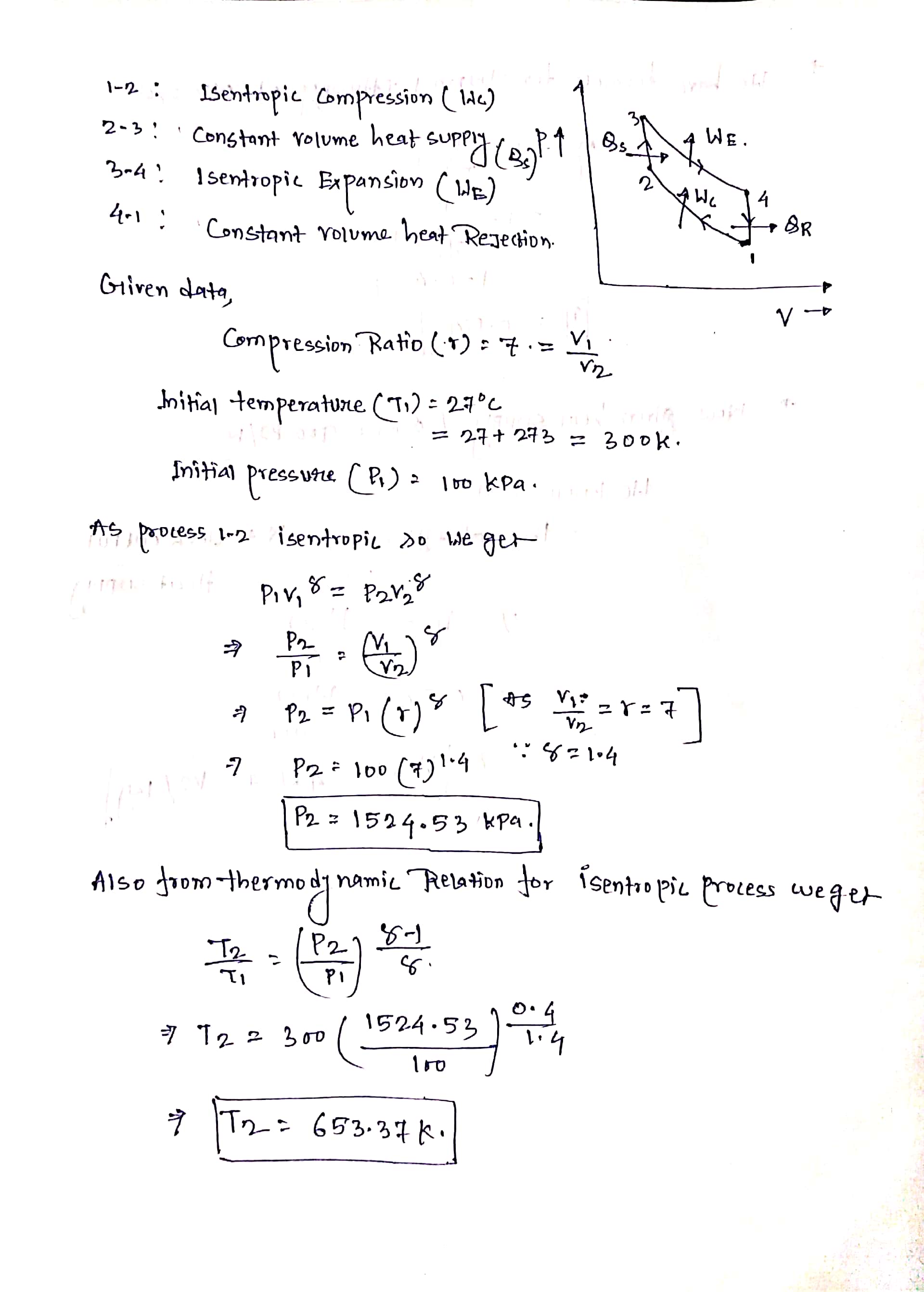

The answer to your question is provided in the image:
