Answer to Question #304664 in Mechanical Engineering for Jhay

Question

2. Two solids of right section 2 and 4 are in pure rolling contact between the circular arcs. What is the angular speed ratio for the position shown? Determine the size of the angles , β, and Ø in degrees, and of the radii x and y in inches.

3. Two shafts, having axes in the same plate intersecting at an angle of 45°, turn in opposite senses at 30 rpm and 90 rpm. Draw a pair of cone to be located on these shafts and turn in pure rolling contact. Diameter of base of smaller cone is 1 in. Calculate the cone angles.

4. Two shafts A and B are connected by rolling cones and turn in the same direction. Shaft A makes 300 rpm while shaft B makes 100 rpm. Calculate the cone angle of each cone and the diameter of each base if the base of cone B is 2 in. from the vertex. θ = 30°

Answer 1

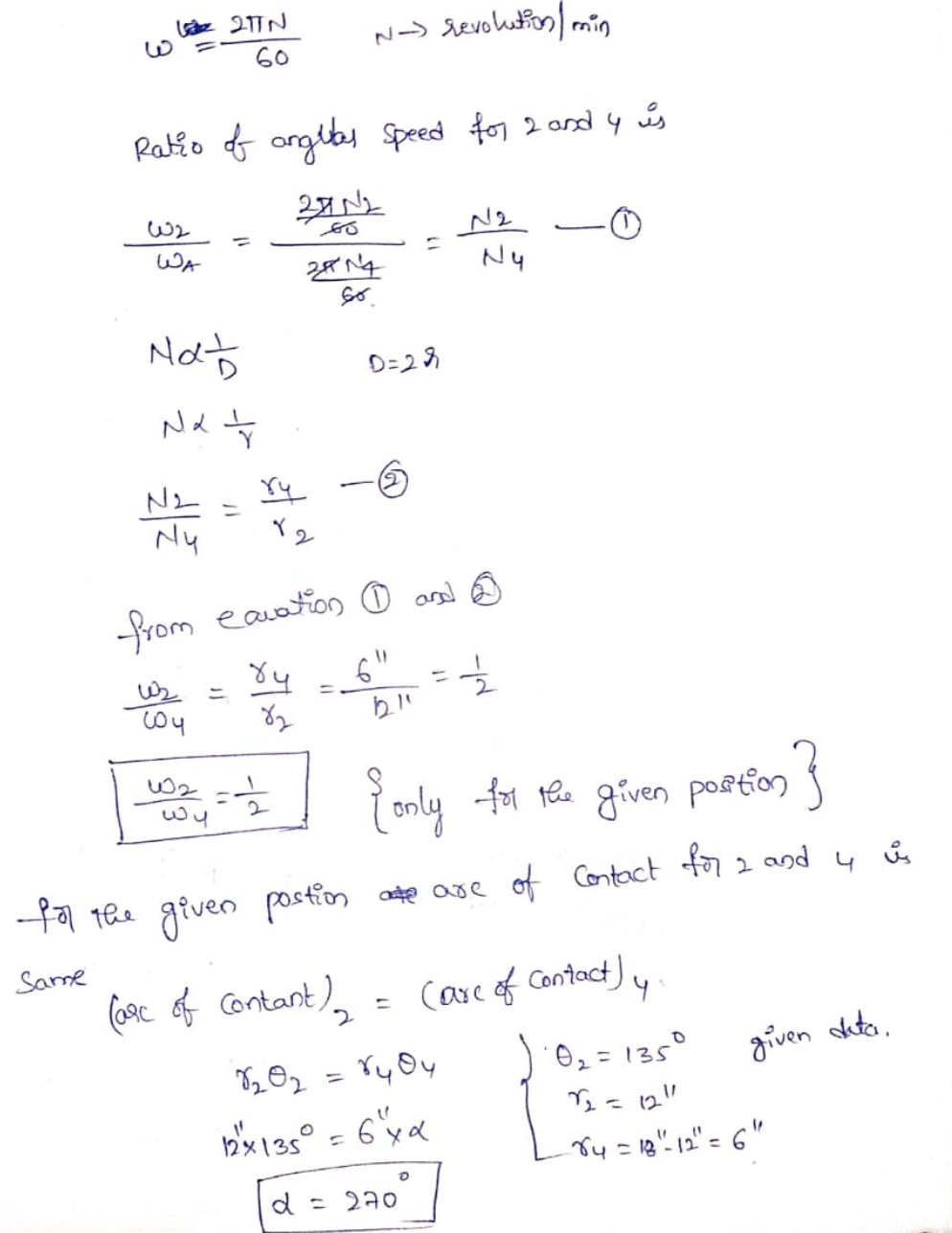

The answer to your question is provided in the image:
