Answer to Question #208488 in Mechanical Engineering for Aranya Dhanure

Question

In a slider crank mechanism, the length of the crank and connecting rod are 100 mm

and 400 mm respectively. The crank rotates uniformly at 600 r.p.m. clockwise. When the crank

has turned through 45° from the inner dead centre, find, by analytical method : 1. Velocity and

acceleration of the slider, 2. Angular velocity and angular acceleration of the connecting rod.

Check your result by Klein’s construction.

[Ans. 5.2 m/s; 279 m/s2; 11 rad/s; 698 rad/s2]

Answer 1

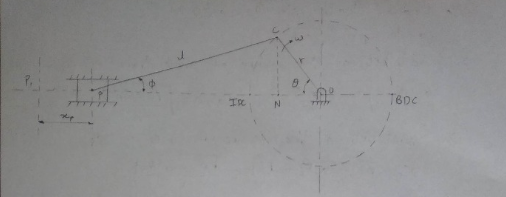

$CN = r sin \theta = l sin \phi \implies sin \phi = \frac{r}{l} sin \theta$

$sin \phi = \frac{sin \theta}{n} \implies n=\frac{l}{r}$

We know that $sin^2 \phi+cos^2 \phi=1 \implies \sqrt{1-\frac{sin^2 \phi}{n^2}}$

$X_p=r(1-cos \theta )+l(1-\sqrt{1-\frac{sin^2 \phi}{n^2}})$

$X_p=r(1-cos \theta )+r(n-\sqrt{n^2-sin^2 \theta})$

Velocity Since the velocity of the slider is rate of change of displacement with respect to time

$V_p= \frac{d(X_p)}{dt}= \frac{d}{d\theta} \frac{d \theta}{dt} (X_p)$

$V_p= \frac{d(X_p)}{dt}= \frac{d}{d\theta} \frac{d \theta}{dt} (r(1-cos \theta )+r(n-\sqrt{n^2-sin^2 \theta}))$

$V_p= \omega r \frac{d \theta}{dt} (r(1-cos \theta )+r(n-\sqrt{n^2-sin^2 \theta}))$

$V_p= \omega r [sin \theta+ \frac{sin \theta}{2* \sqrt{n^2-sin^2 \theta}}]$
