Answer to Question #199444 in Electrical Engineering for Lucy

Question #199444

Q.3 Design a sequential circuit by using JK-flip flop which can detect a sequence of three or more consecutive 1’s in a string of bits coming through an input line.


1
Expert's answer
2021-05-31T06:19:10-0400

The state diagram



"S_o=0 \\space \\space \\space \\space0"

"S_1=0 \\space \\space \\space \\space1"

"S_2=1 \\space \\space \\space \\space0"

"S_3=1 \\space \\space \\space \\space1"

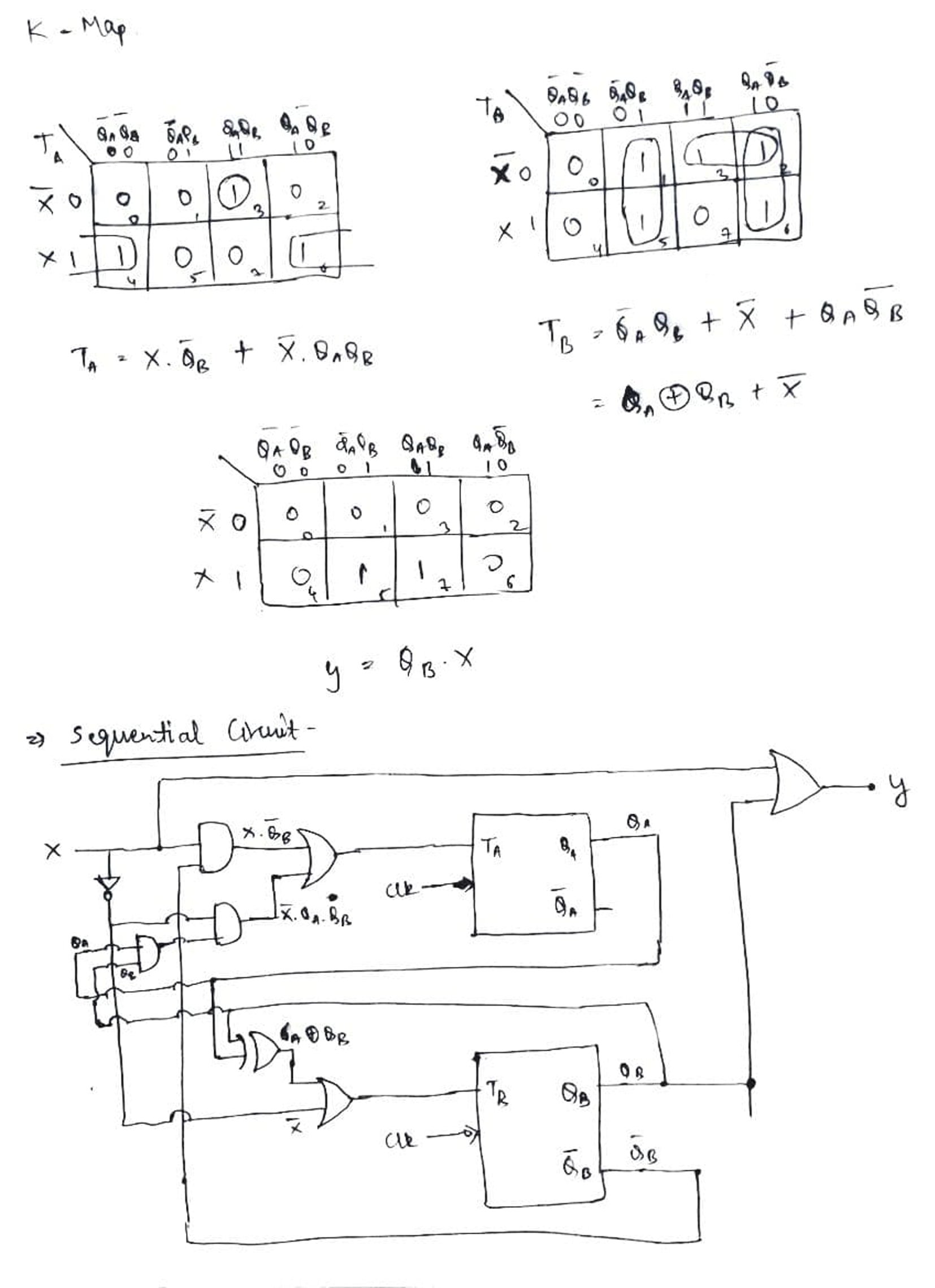

State Table= The state of the T flip flop is defined using the acitation table of T flipflop
