Answer to Question #194392 in Electrical Engineering for Hassam

Question #194392

A system has 4 input lines {A,B,C,D} and 1 output line {F}. The input lines {A, B, C } of the system are

connected to the selection lines {S2 , S1 , S0} of an 8×1 multiplexer, respectively. The connection configuration

of data input lines {i0, i1, … , i7 } of the multiplexer are given as follows:

i1= i4 = D; i3 = i5 =1; i0 = i6 = 0; and i7 = i2 = D’

Determine the Boolean function that the output of the multiplexer implements. Also, provide a minimized PoS

expression for the obtained Boolean function F(A,B,C,D).


1
Expert's answer
2021-05-24T15:59:01-0400

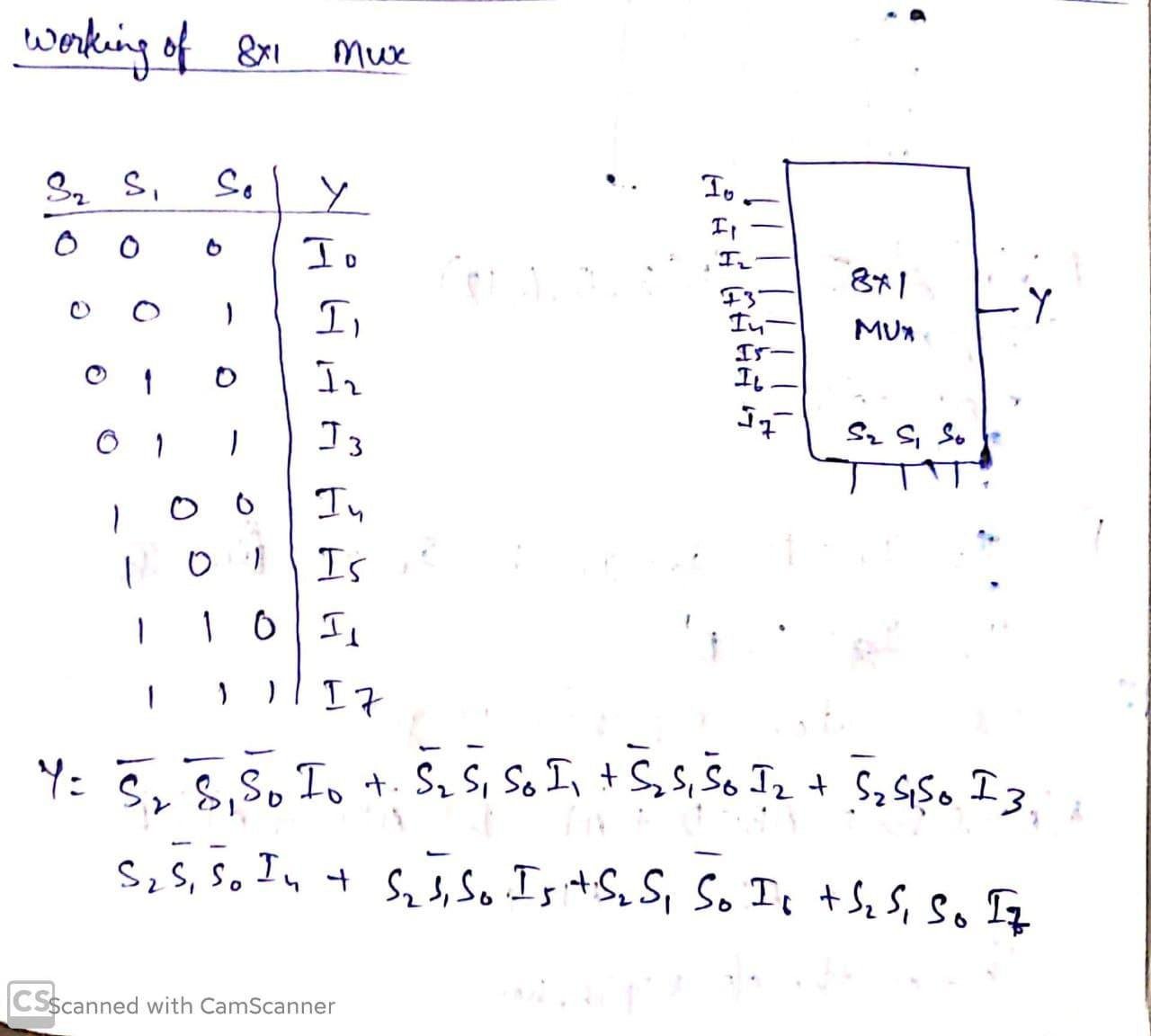

The answer to your question is provided in the image:
