Answer to Question #216124 in Electricity and Magnetism for DANI

Question #216124

For discharging process

R=10KiloOHM,V=470microF, E=12V.

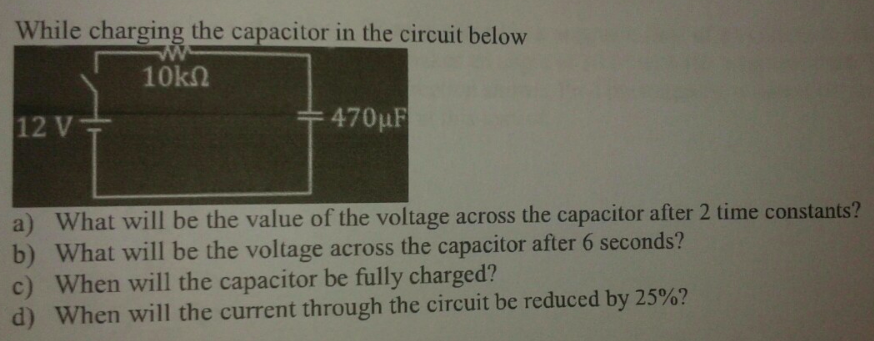

A)What value will be the voltage across the capacitor 2 time constant

B)what value will be the voltage across after 6 seconds.

C)when the capacitor will be fully charged

D)when will the current through the circuit be reduced by 25%


1
Expert's answer
2021-07-12T12:16:18-0400


A) Time constant

τ=RC=10  kΩ×470  μF=4.7  st=2×τt=9.4  sτ=RC \\ = 10 \;k \Omega\times 470\; \mu F \\ = 4.7 \;s \\ t = 2 \times τ \\ t=9.4 \;s

Voltage across the capacitor during charging

V=V0(1et/RC)=12(1e9.4/4.7)=10.375  VV=V_0(1 -e^{-t/RC}) \\ = 12(1 -e^{-9.4/4.7}) \\ = 10.375\;V

B) Voltage across the capacitor after 6 s

V=V0(1et/RC)=12(1e6/4.7)=8.652  VV=V_0(1 -e^{-t/RC}) \\ = 12(1 -e^{-6/4.7}) \\ = 8.652 \;V

C) At time t=4τ, voltage V=11.78 V

At time t=5τ, voltage V=11.92 V

At time t=6τ, voltage V=11.97 V

The choice is up to you, which time you want to consider because all time voltage is approximately equal to supply voltage.

D) Current in circuit

Ic=VRet/RCI_c= \frac{V}{R}e^{-t/RC}

When current reduced by 25%, remaining current 75%:

0.75=et/4.7ln(0.75)=t/4.7t=1.35  s0.75 = e^{-t/4.7} \\ ln(0.75)=-t/4.7 \\ t = 1.35 \;s
