Question

After identifying the entities, attributes, and relationships among the entities of the application, you
need to start with the design of the database. For this, you need to perform the following tasks:
1. Draw an E/R diagram to demonstrate the relationships between the various entities of the
application. [8 Marks]
2. Map the E/R diagram to tables that you need create in order to accomplish the requirements of
the application. [3 Marks]
3. Identify the attributes that can be used as primary keys for the corresponding tables in the
relational database design. [2 Marks]
4. Identify the various schemas that need to be created while designing the database. [2 Marks]

Answer 1

Main Phases of Database Design

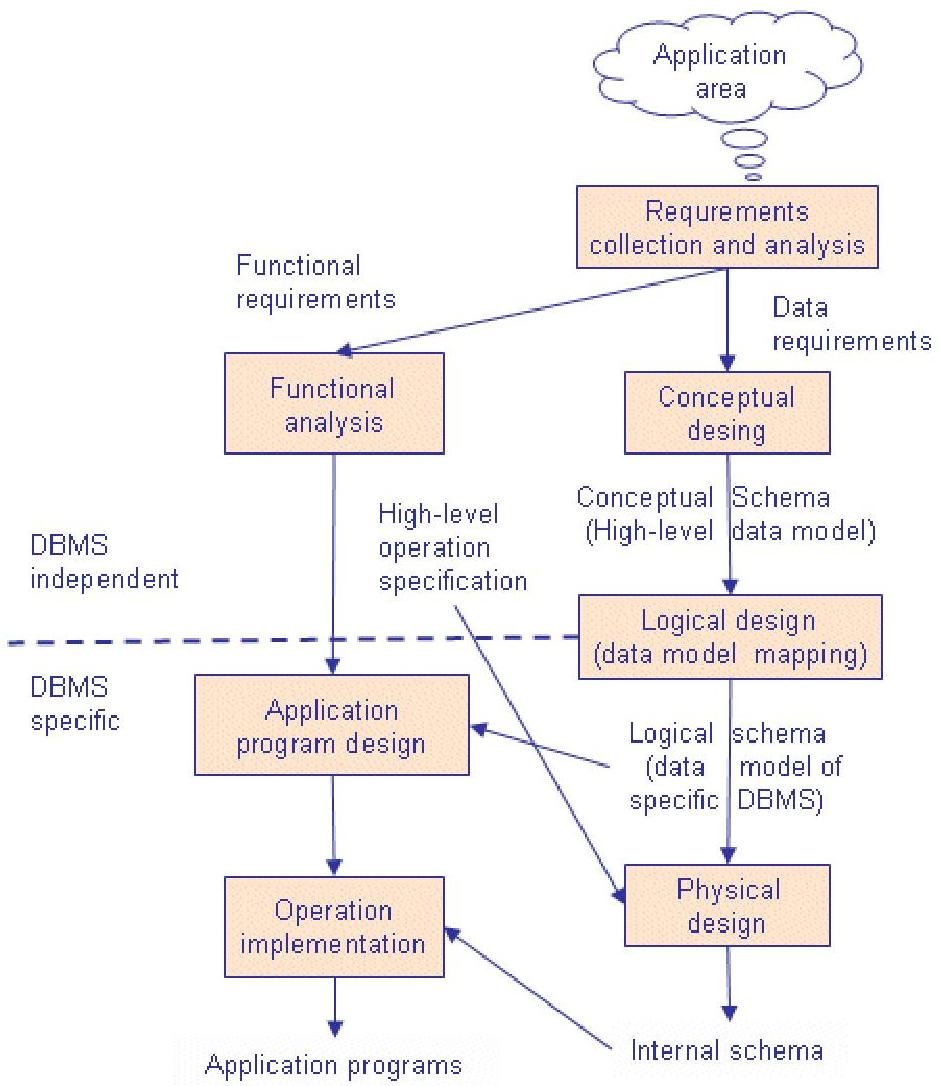

In the picture below there are the main phases of database design. Database design is connected with application design.

The requirements and the collection analysis phase produce both data requirements and functional requirements. The data requirements are used as a source of database design. The data requirements should be specified in as detailed and complete form as possible.

In parallel with specifying the data requirements, it is useful to specify the known functional requirements of the application. These consist of user-defined operations that will be applied to the database (retrievals and updates). The functional requirements are used as a source of application software design. Of course some functions may produce also needs for database design.

Note that some phases are database management system independent and some are dependent. The idea is to design first the database without thinking about the actual database system - just to concentrate on the data.

Conceptual Design

Once all the requirements have been collected and analyzed, the next step is to create a conceptual schema for the database, using a high level conceptual data model. This phase is called conceptual design.

The result of this phase is an Entity-Relationship (ER) diagram or UML class diagram. It is a high-level data model of the specific application area. It describes how different entities (objects, items) are related to each other. It also describes what attributes (features) each entity has. It includes the definitions of all the concepts (entities, attributes) of the application area.

During or after the conceptual schema design, the basic data model operations can be used to specify the high-level user operations identified during the functional analysis. This also serves to confirm that the conceptual schema meets all the indenfied functional requirements.

There are several notations to draw the ER diagram.

Logical Design

The result of the logical design phase (or data model mapping phase) is a set of relation schemas. The ER diagram or class diagram is the basis for these relation schemas.

To create the relation schemas is quite a mechanical operation. There are rules how the ER model or class diagram is transferred to relation schemas.

The relation schemas are the basis for table definitions. In this phase (if not done in previous phase) the primary keys and foreign keys are defined.

Normalization

Normalization is the last part of the logical design. The goal of normalization is to eliminate redundancy and potential update anomalies.

Redundancy means that the same data is saved more than once in a database. Update anomaly is a consequence of redundancy. If a piece of data is saved in more than one place, the same data must be updated in more than one place.

Normalization is a technique by which one can modify the relation schema to reduce the redundancy. Each normalization phase adds more relations (tables) into the database.

Physical Design

The goal of the last phase of database design, physical design, is to implement the database. At this phase one must know which database management system (DBMS) is used. For example, different DBMS's have different names for datatypes and have different datatypes.

The SQL clauses to create the database are written. The indexes, the integrity constraints (rules) and the users' access rights are defined.

Finally the data to test the database is added in.

In parallel with these activities, application programs are designed. The implementation of the programs can start when the database is created and data has been added in.
