Question

A student has designed his own thermometer with a temperature scale called S. Here

he has marked the freezing point of water as 30 °S and the boiling point of water as

150 °S. The S scale has 130 divisions.

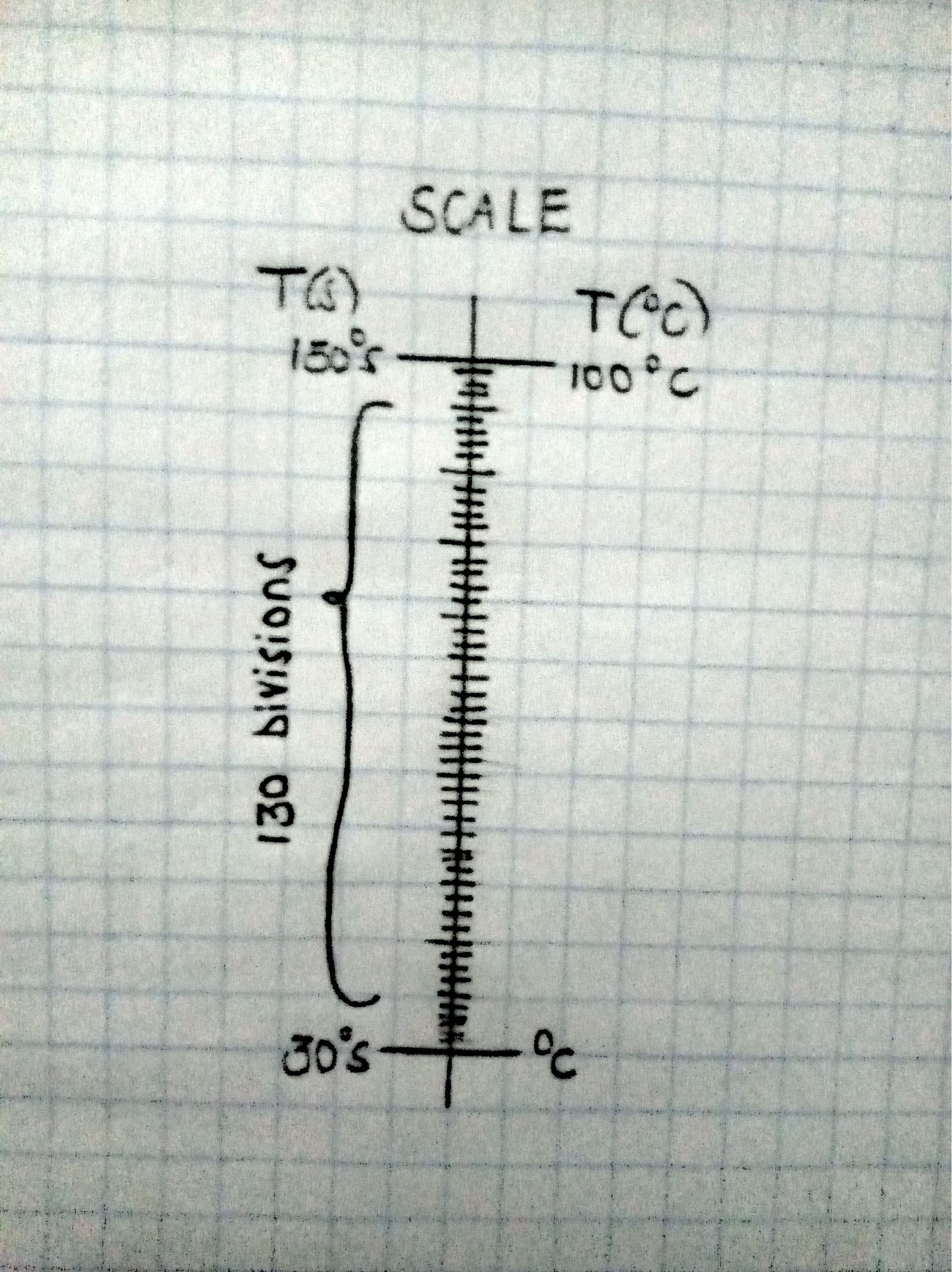

(a) By drawing a suitable diagram, express the relation (mathematical equation)

between 𝑇𝐶 (temperature in Celsius) and 𝑇𝑆 (temperature in S)

(b) What reading will be shown in S scale when he measures the temperature of an

object at 60°C.

Answer 1

Solution;

(a)

Here;

130 Division=100°c=120°S

If N is the number of division;

$1 division=\frac{10}{13}°c=\frac{12}{13}°s$

Reading on each scale can be expressed as;

$T(°s)=\frac{12}{13}N+30$

$T(°c)=\frac{10}{13}N$

(b)

T(°c)=60

$60=\frac{10}{13}N$

$N=78$

Hence reading on S scale is;

$T(°s)=\frac{12}{13}×78+30$

$T(°s)=72+30=102°s$
