Question

Read the given time versus displacement data carefully and answer the following questions.
Time(s) 0 2 4 6 8 10
Displacement (m) 0 8 16 8 10
a) sketch the displacement-time graph for this motion.
b)Sketch a distance-time graph for the same motion.
c) for which time intervals the body possess
i) Uniform retardation.
ii)Constant velocity.
d) What will be the displacement of the body at time= 3 sec
and time= 7 sec.

Answer 1

Answer on Question #60051-Physics – Mechanics | Relativity

Read the given time versus displacement data carefully and answer the following questions.

Time(s) 0 2 4 6 8

Displacement (m) 0 8 16 8 10

a) sketch the displacement-time graph for this motion.

b) Sketch a distance-time graph for the same motion.

c) for which time intervals the body possess

i) Uniform retardation.

ii)Constant velocity.

d) What will be the displacement of the body at time= 3 sec and time= 7 sec.

Solution

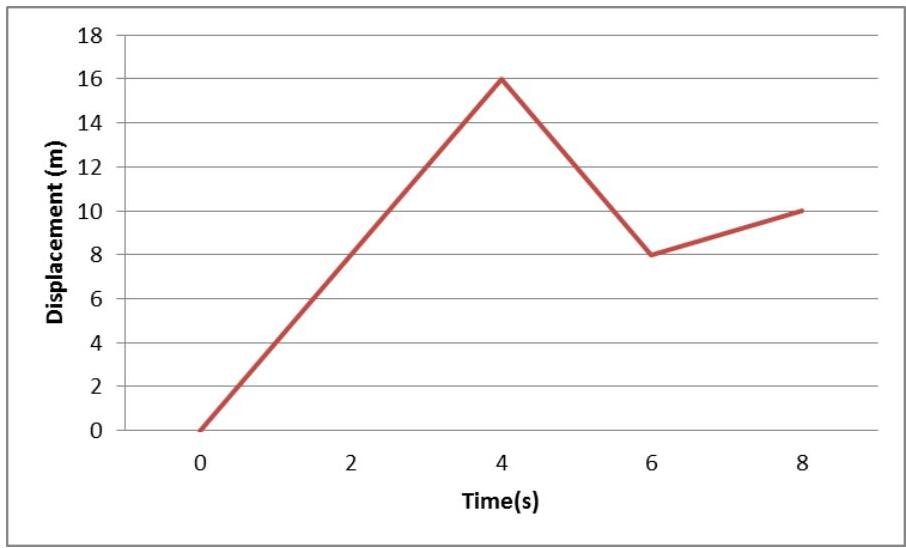

a)

b)

c) i) None.

ii) (0;4); (4;6); (6;8).

d)

$$d(3) = 12 \, \text{m}$$ $$d(7) = 9 \, \text{m}$$
