Question

Four particles carrying charges +2q,-2q,+4q and -4q (with q=1.0 nC) are kept at the vectors of a square of side 6.0 cm.Determine the net electric field due to these charged particles at the centre of square.What is the electrostatic force on a particle carrying positive charge of 1.0 nC placed at the centre of square? Please explain in detail.

Answer 1

Answer on Question #85532, Physics / Electromagnetism

Question:

Four particles carrying charges $+2\mathrm{q}, -2\mathrm{q}, +4\mathrm{q}$ and $-4\mathrm{q}$ (with $q = 1.0 \, \mathrm{nC}$ ) are kept at the vectors of a square of side $6.0 \, \mathrm{cm}$ . Determine the net electric field due to these charged particles at the centre of square. What is the electrostatic force on a particle carrying positive charge of $1.0 \, \mathrm{nC}$ placed at the centre of square? Please explain in detail.

Solution:

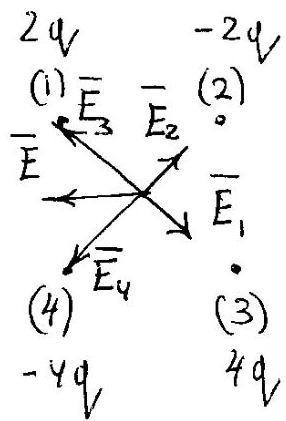

As far as for an electric field $\overline{E} = \sum_{i}\overline{E_{i}}$ , then in accordance with the figure above

$$E = \sqrt {2} \frac {k 2 q \sqrt {2} ^ {2}}{a ^ {2}} = \frac {4 \sqrt {2} 9 \cdot 2}{3 6 \cdot 1 0 ^ {- 4}} = 2 8. 3 (\mathrm {k V / m}). \quad \text {Respectively} \quad \text {the} \quad \text {force}$$ $$f = E q = 2 8. 3 \cdot 1 0 ^ {3} \cdot 1 0 ^ {- 9} = 2 8. 3 (\mathrm {m c N}).$$

The answer:

The net electric field $\mathrm{E} = 28.3\mathrm{kV / m}$

the electrostatic force $\mathrm{f} = 28.3\mathrm{mcN}$
