Answer to Question #201135 in Electric Circuits for izaan

Question

(a)   Applying Kirchhoff’s voltage law on the following circuit diagram



1.     Write a KVL equation for the loop ACDBA going clockwise from point A.

2.     Write a KVL equation for the loop ACEFDBA going clockwise from point A.

Answer 1

ANSWER :-

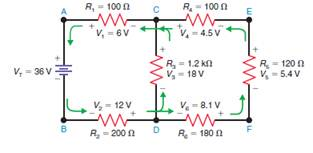

as figure is not given , but i found in a book with the same question

now lets solve according to the figure

Applying Kirchhoff’s voltage law on the circuit diagram that is given above

we have the equations comes out to be

1 . $6V + 18V + 12V − 36V = 0$

2.$6V + 4.5V + 5.4V + 8.1V + 12V − 36V = 0$
