Answer to Question #323203 in Mechanical Engineering for hoshikwon

Question

A piston cylinder containing steam at 700 kPa at 250 degrees celcius undergoes a constant pressure process until the quality is 70%. Determine: a). Work done b). Heat transferred c). Change in internal energy d). Change in enthalpy NOTE: - INDICATE THE HS and TS DIAGRAM - INDICATE THE INITIAL AND FINAL STATE OF THE SUBSTANCE

Answer 1

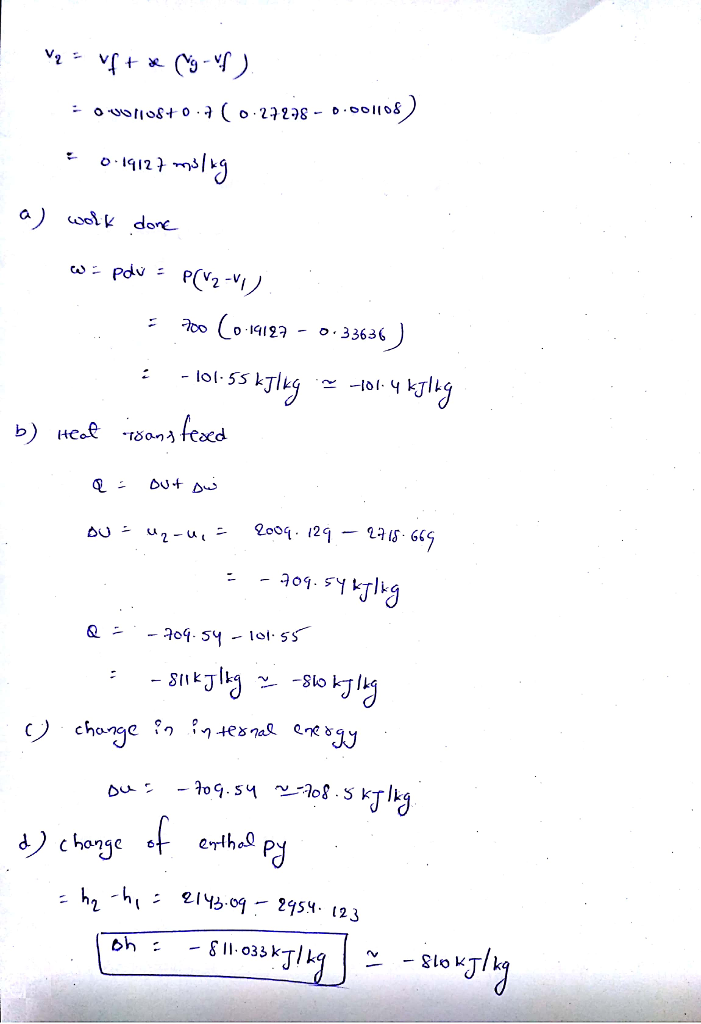

Solution;
