Answer to Question #316967 in Mechanical Engineering for Jhonny
5. Two shafts 30 in. apart, each carrying a four-step pulley, are to be connected by a cross belt. The driving shaft is to turn 180 rpm while the driven shaft is to turn 50, 150, 250, and 600 rpm. The smallest step of the driver is 10 in. in diameter. Find (a) the diameters of all the steps, (b) angle of contact for each pair of pulleys, and (c) belt length. PLEASE EXPLAIN THE DEATILED ANSWER WITH SOLUTION.

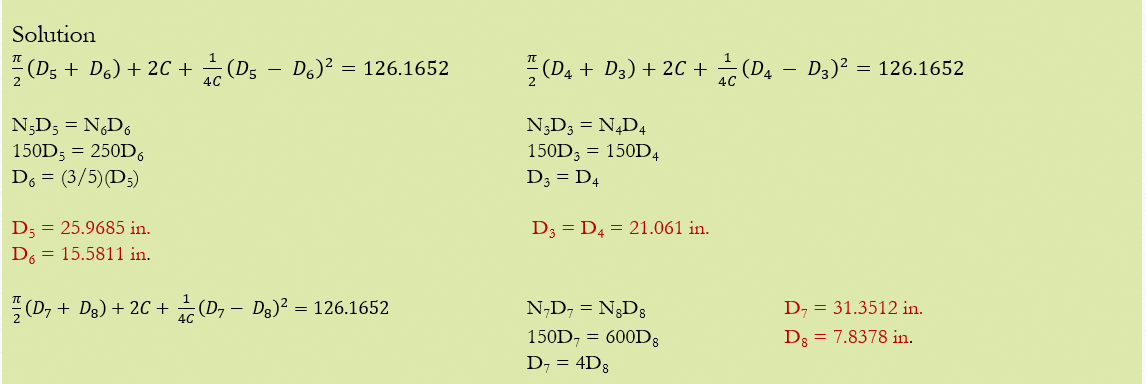

The answer to your question is provided in the image:
-
![Help me with my assignment!]()
