Answer to Question #309443 in Mechanical Engineering for Jhonny

Question #309443

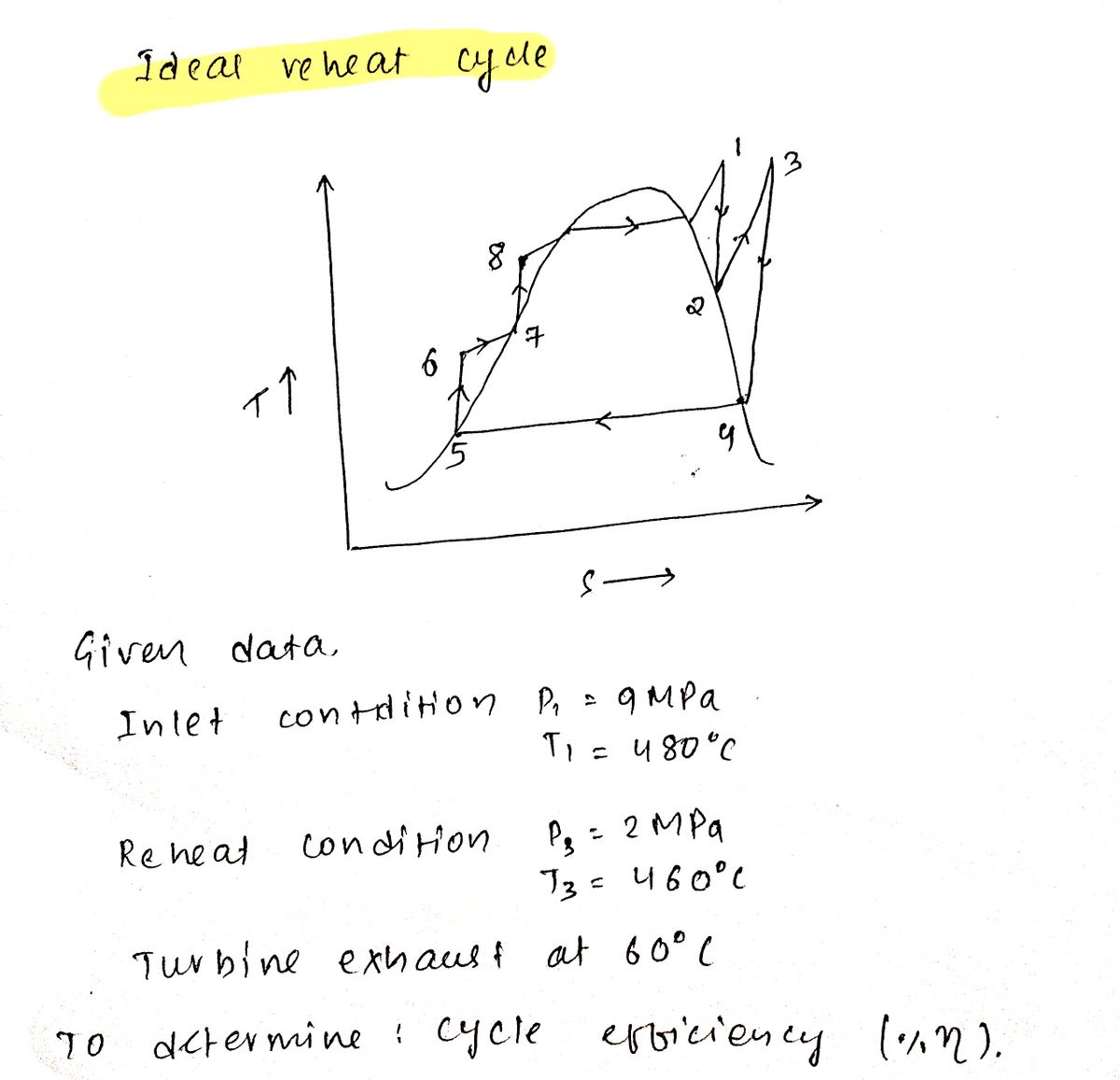

3. In an ideal reheat cycle, the steam throttled condition is 8 Mpa and 480℃. The steam is then reheated to 2 Mpa and 460℃. If turbine exhaust is 60℃, determine cycle efficiency.

Expert's answer

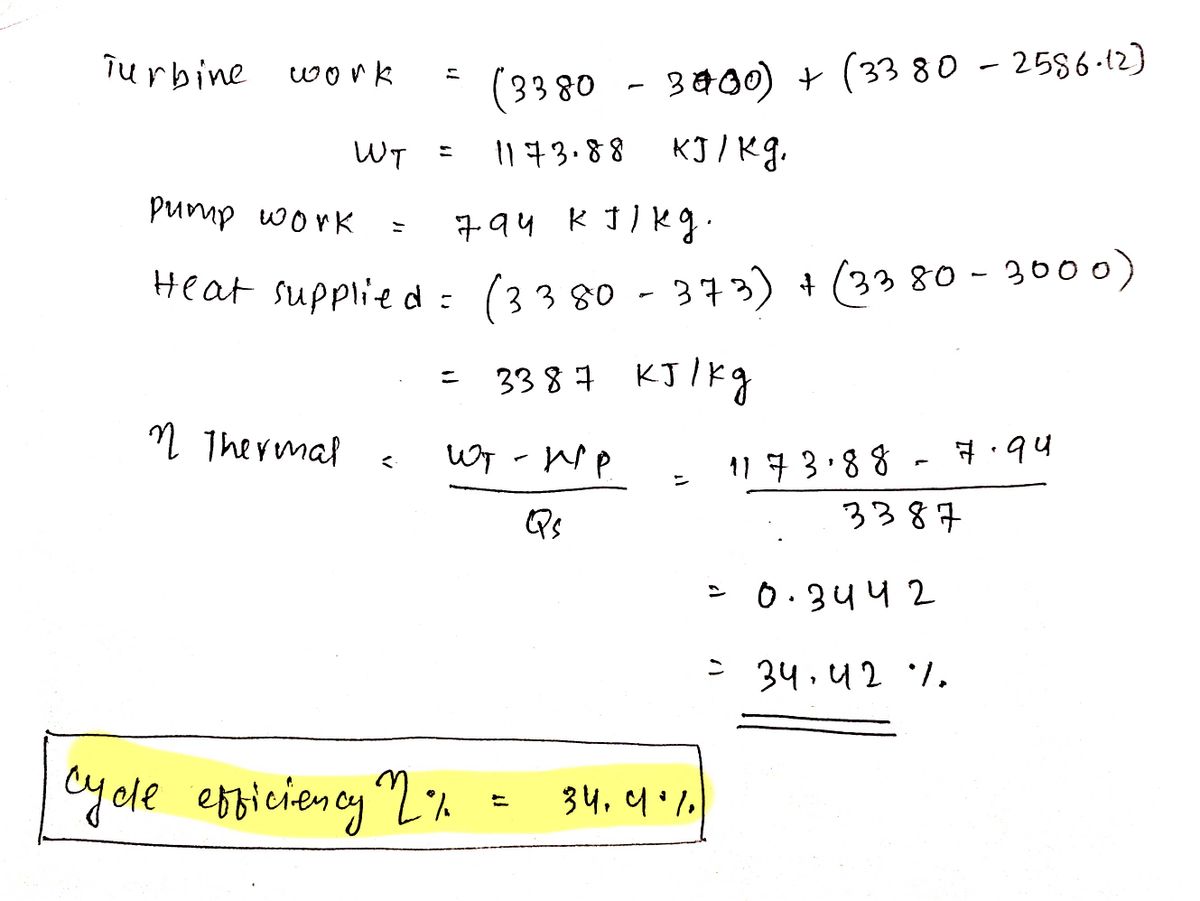

Answer is given below
