Question #301074

A reciprocating roller follower has cycloidal motion and its stroke of 30 mm is completed in 90°of the cam rotation. The follower is offset against the direction of rotation by 6.25 mm and radius of the roller is 12.5 mm. determine the base circle radius which would limit the pressure angle to 30°

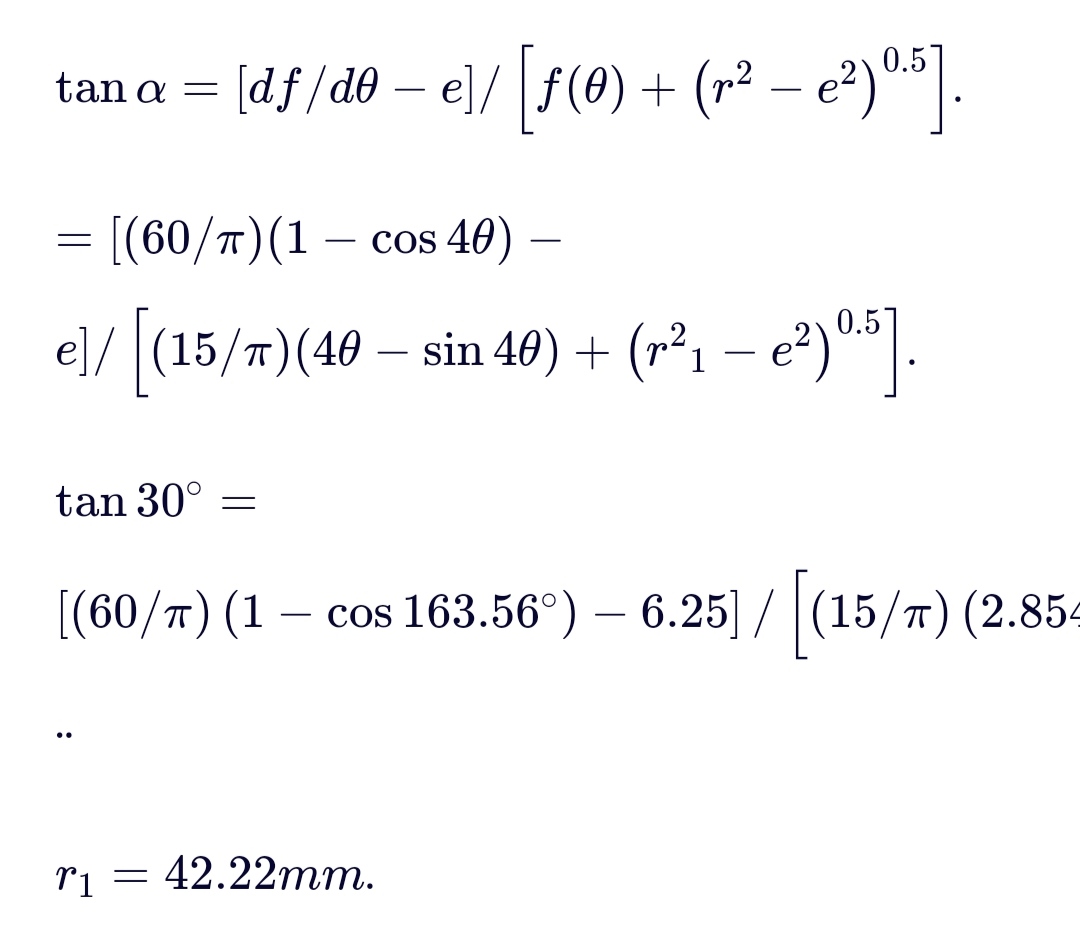

Expert's answer

The answer to your question is provided below
