Answer to Question #300324 in Mechanical Engineering for sisila

Question

A continuous cable (diameter 6 mm) with tension force T is attached to a horizontal frame member at B and C to support a sign structure, Fig. 1. The cable passes over a small pulley at D. The wire is made of a copper alloy, and the stress-strain relationship for the wire is (a) Find the axial normal strain in the cable and its elongation due to the load W = 6.8 kN (b) If the forces are removed, what is the permanent set of the cable. Hint: Start with constructing the stress-strain diagram and determine the modulus of elasticity, E and the 0.2% offset yield stress.

Answer 1

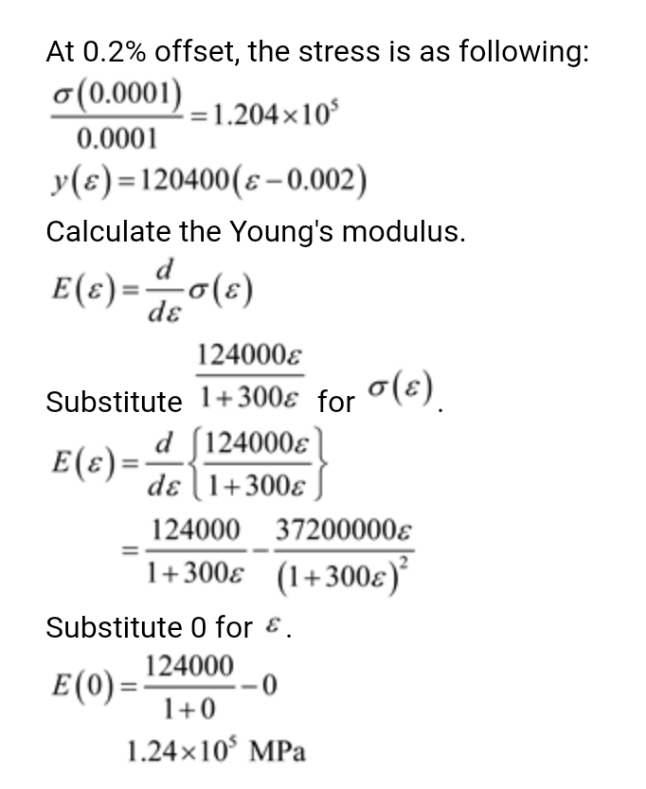

The answer to your question is provided in the image:
