Answer to Question #300210 in Mechanical Engineering for king

Mechanical Engineering

Question #300210

Deduce an expression for Air-standard efficiency of Otto cycle. A diesel engine has a

compression ratio of 22 and cut-off take place at 7% of the stroke. Find the efficiency

Expert's answer

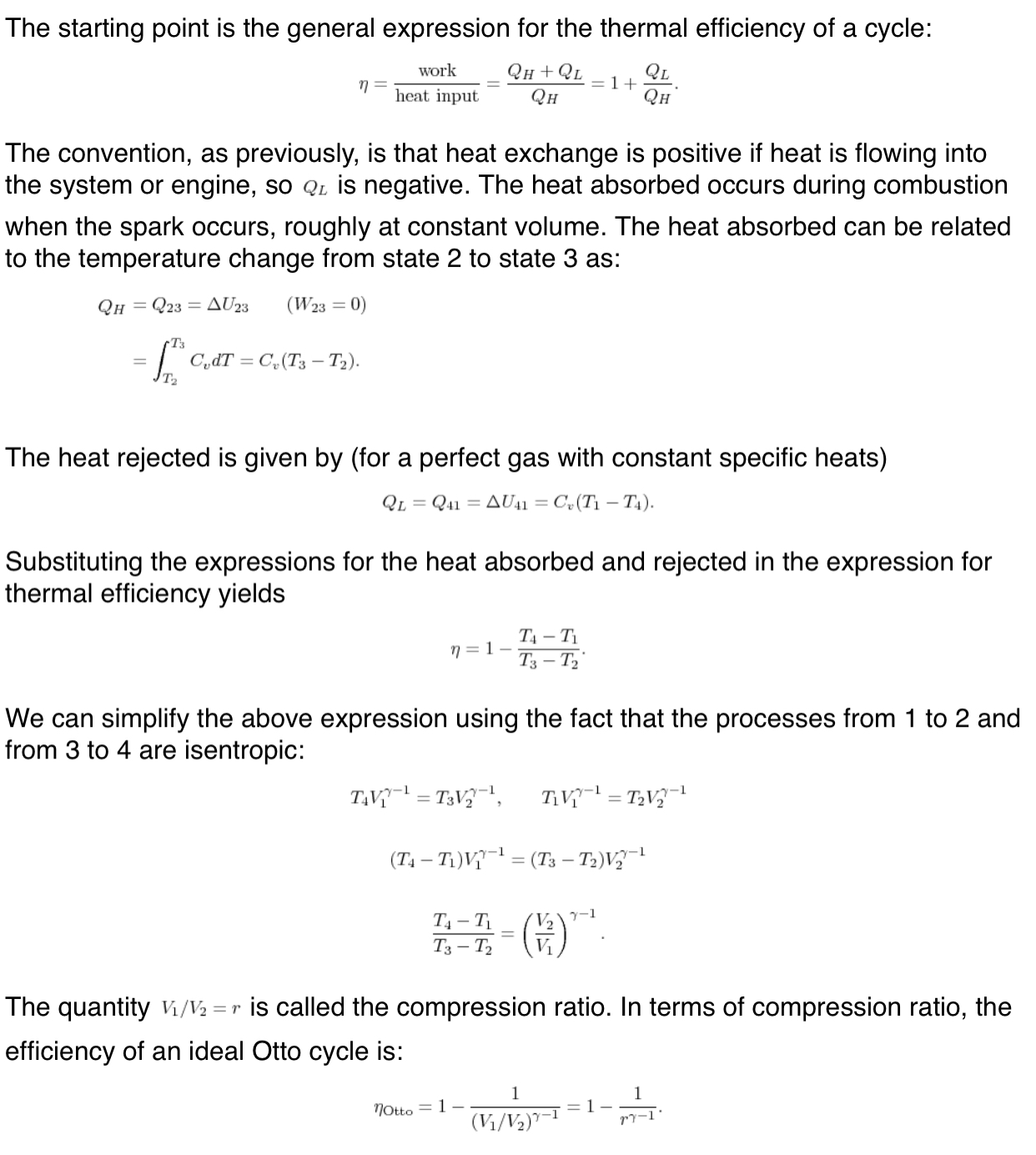

Answer is given below
