Answer to Question #296478 in Mechanical Engineering for king

Question

In a slider crank mechanism the length of the crank OB is (100+X)mm and length of the connecting rod is (475+X)mm. The center of gravity G of the connecting rod is (250+X)mm from the slider A. crank speed is (500+X)rpm clockwise. When the crank has turned 45 deg. From the inner dead center. Determine( using both relative velocity method and Instantaneous center method) 1. Velocity of the slider 2. Velocity of point G 3. Angular velocity of the connecting rod AB Note where X is two digit number made from the last two digit of the registration number of the students For example if the reg. no. of the student is 11912081 then X=81 Draw the neat and clean diagram with proper scale. Rough drawings will not be considered

Answer 1

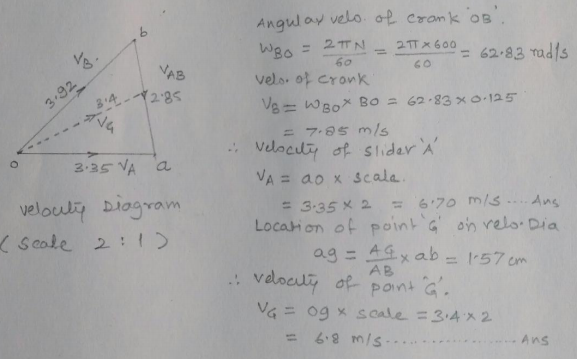

Answer is given below
