Answer to Question #293121 in Mechanical Engineering for vamsi

Question

A screw jack is to lift a load of 80 kN through aheight of 400 mm. The elastic strength of screw material in tension and compression is 200 MPa and in shear 120 MPa. The material for nut is phosphorbronze for which the elastic limit may be taken as 100 MPa in tension, 90 MPa in compression and 80 MPa in shear. The bearing pressure between the nut and the screw is not to exceed 18 N/mm2. Design and draw the screw jack. The design should include the design of 1. screw, 2. nut, 3. handle and cup,and 4. body

Answer 1

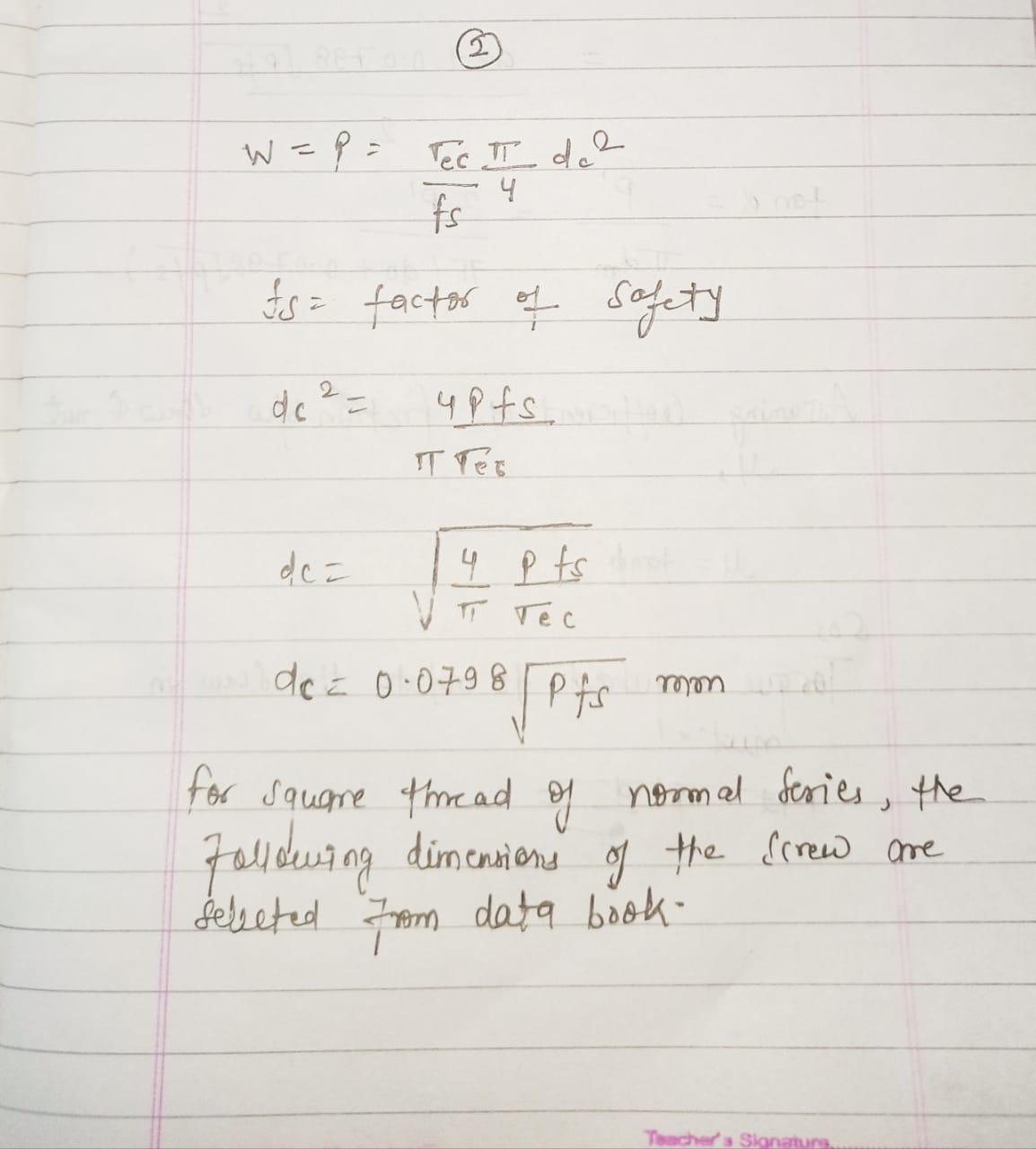

The answer to your question is provided in the image:
