Answer to Question #284968 in Mechanical Engineering for vince

Mechanical Engineering

Question #284968

Steam at a temperature of 250oC has a specific volume of 0.15436 m3/kg . What are the pressure , specific internal energy, enthalpy, and entropy?

Expert's answer

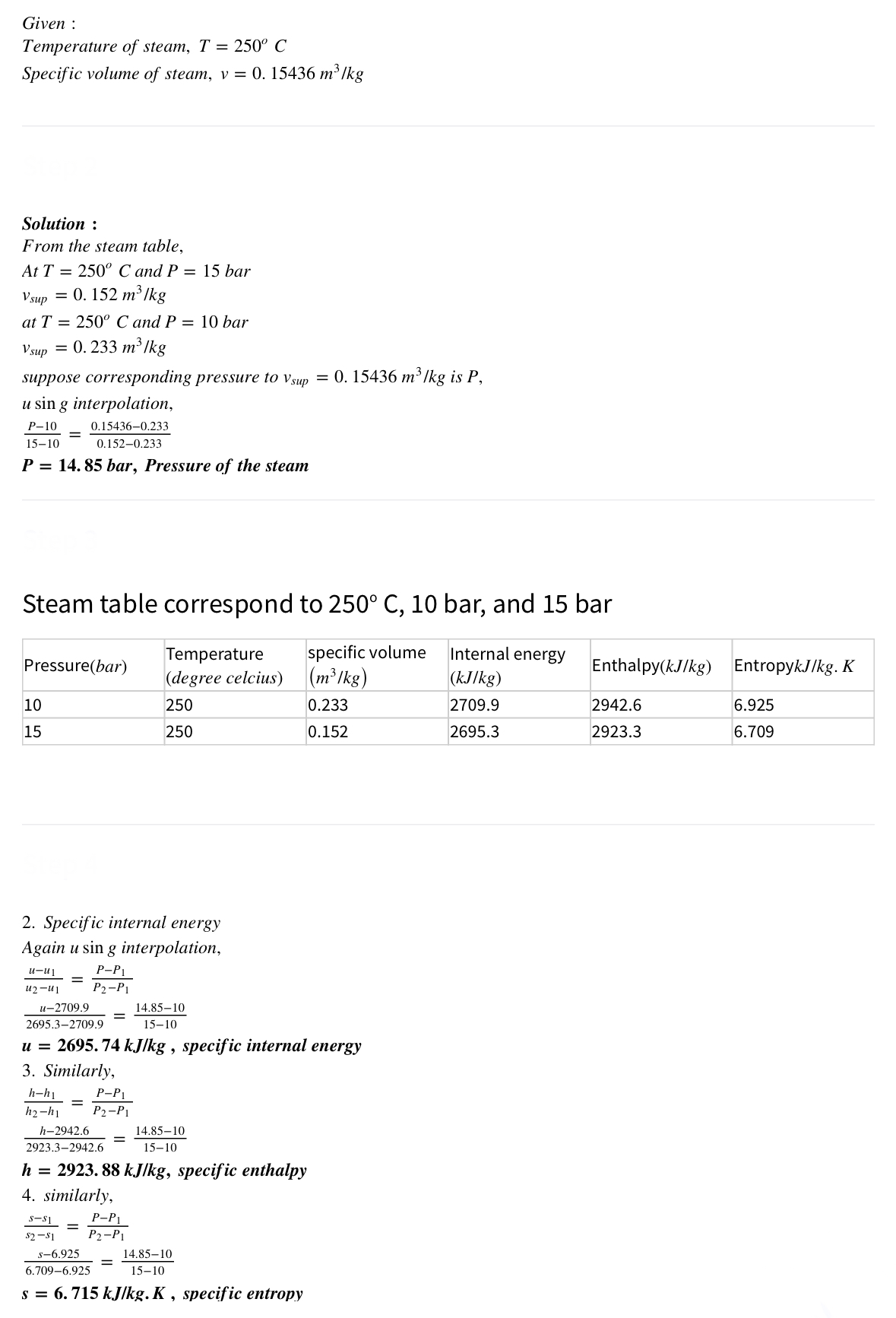

Answer with table is given below:
