Draw the profile of the cam when the axis of the follower passes through the axis of the cam shaft,

Expert's answer

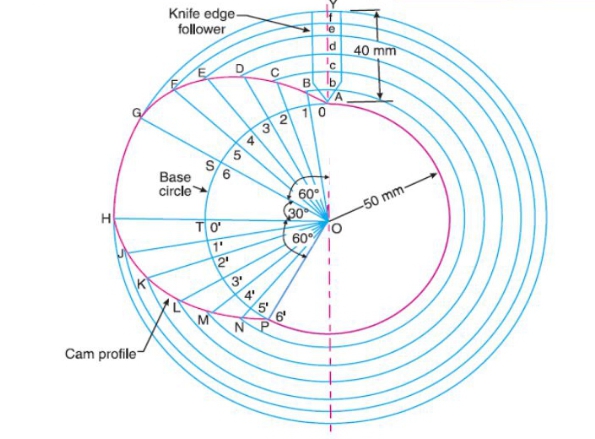

The profile of a cam when the axis of the follower passes the axis of the cam shaft is as below;
