Answer to Question #188240 in Mechanical Engineering for shivam

Question #188240

A cube of edge 24mm is resting on the top of a frustum of cone of base diameter 60mm and top diameter of 40mm with axis height of 72mm. Draw the isometric view of these solids?

Expert's answer

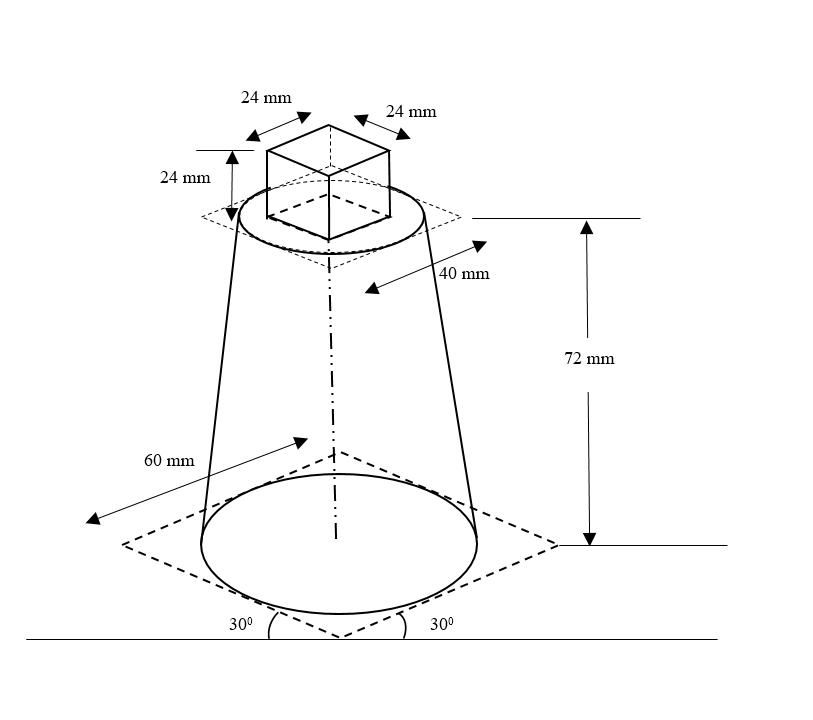

The answer to your question is provided in the image:

Learn more about our help with Assignments: Mechanical Engineering
