Answer to Question #263381 in Electrical Engineering for Rahul

Question

2. Explain the Memory stack organization of 16 locations of stack( 0 to 15). take the initial value of the

stack pointer is SP = 0E in Hex. Explain the following push and pop instructions through the Memory

stack organization diagram.

(1) PUSH R5 WHERE R5 = 37 in Hex

(2) POP R4 WHERE R4 = (40 ) Hex

Answer 1

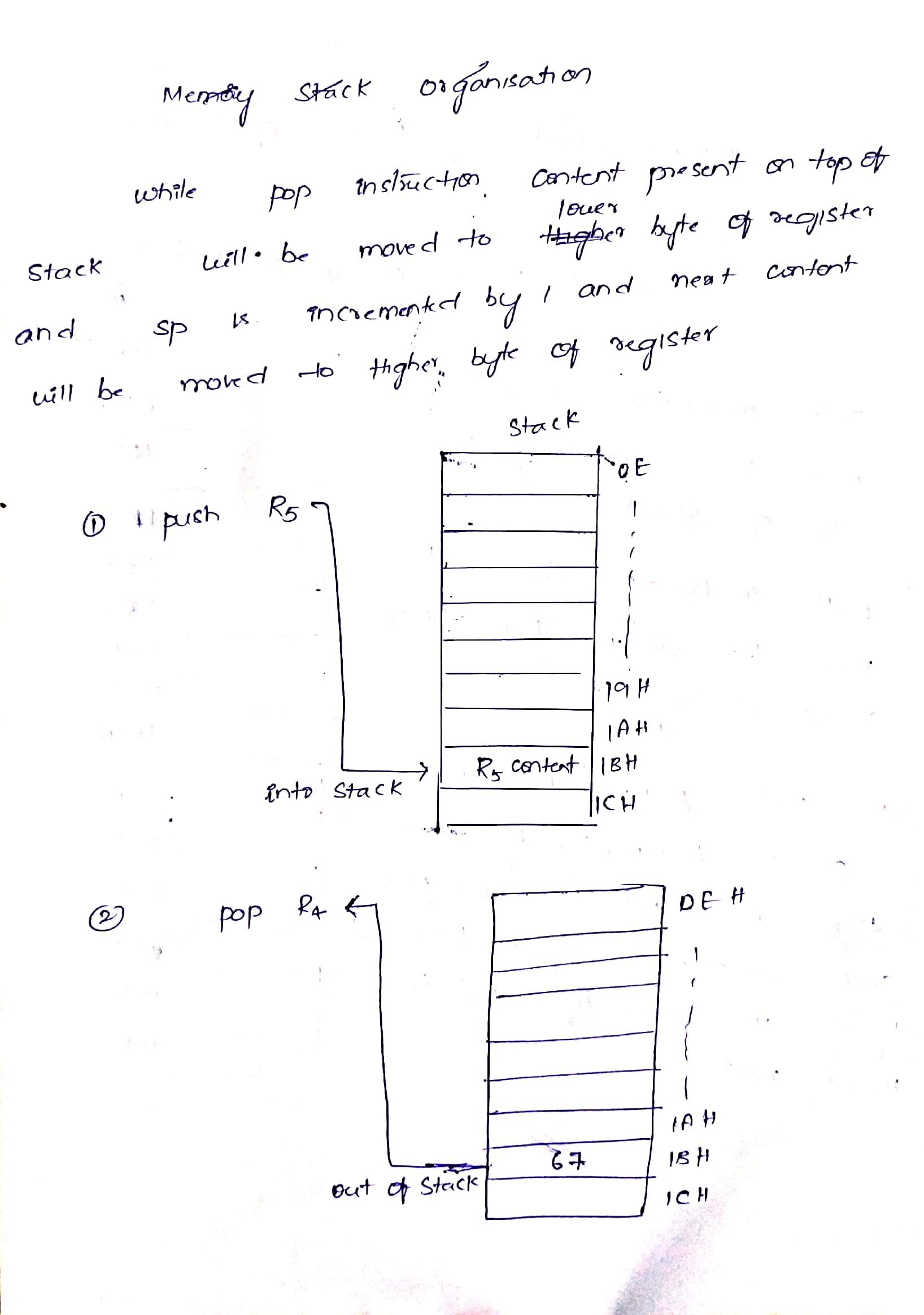

The answer to your question is provided in the image:
