Answer to Question #311898 in Civil and Environmental Engineering for Oxian

Question

A project specifies a concrete strength of at least 3000 psi. Materials engineers will design

the mix for a strength higher than that. Calculate the required average compressive strength of

the mix design if the standard deviation is s = 350 psi. Estimate the modulus of elasticity of the

concrete at the required average compressive strength.

Answer 1

Concrete strength = 3000 psi

Standard deviation is s = 350 psi

To determine :-

The required average compressive strength of the mix design

The modulus of elasticity of the concrete at the required average compressive strength

Step 2

The required average compressive strength of the mix design can be calculated by using the formula

f'_cr = f'c + 1.34 s

where,

f'cr = Required compressive strength

f'c = Specified concrete compressive strength

s = standard deviation

Also,

Required average compressive strength for large deviation can be calculated by using the formula

f'_cr = f'c + 2.33 s - 500

So,

Larger value out of the two value is to be taken as the required compressive strength

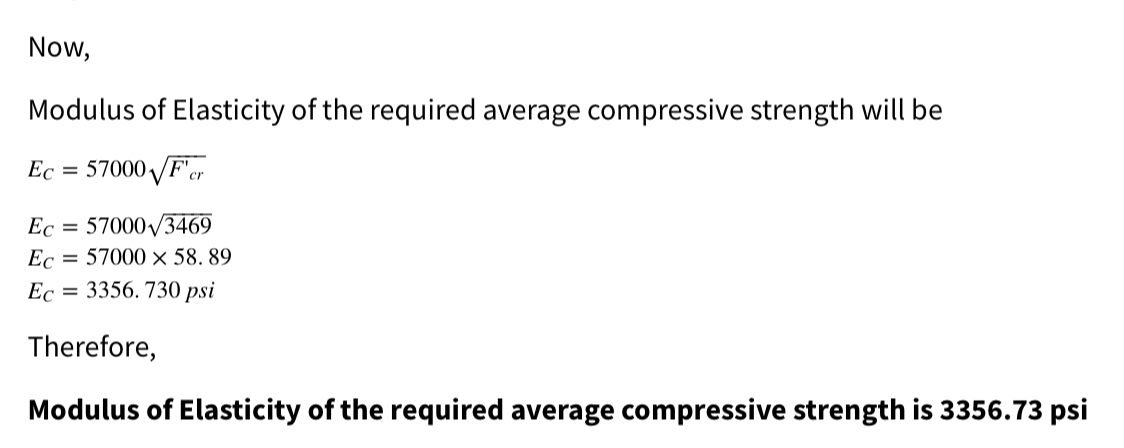

Modulus of Elasticity is given by formula ,

EC=57000√F'cr

Step 3

Now,

Required average compressive strength will be

f'_cr = f'c + 1.34 s

Here,

f'c = 3000 psi

s = 350 psi

So,

f'_cr = 3000 + 1.34×350

×

350

f'_cr = 3000 + 469

f'_cr = 3469 psi

Also,

Required average compressive strength for large deviation will be

f'_cr = f'c + 2.33 s - 500

f'_cr =3000+ 2.33×350

×

350

 - 500

f'_cr = 3000 + 815.5 - 500

f'_cr = 3000 + 315.5

f'cr = 3315.5 psi

Now,

Larger from both the value is 3469 psi

Therefore,

The required average compressive strength of the mix design is 3469 psi
