Draw Lewis structures for the following molecules, including all major resonance
contributors (indicate the formal charge on each of the atoms in the structure [8]
(a) N2
(b) CH3CO2-
(c) O3
1
Expert's answer
2020-08-14T08:24:59-0400

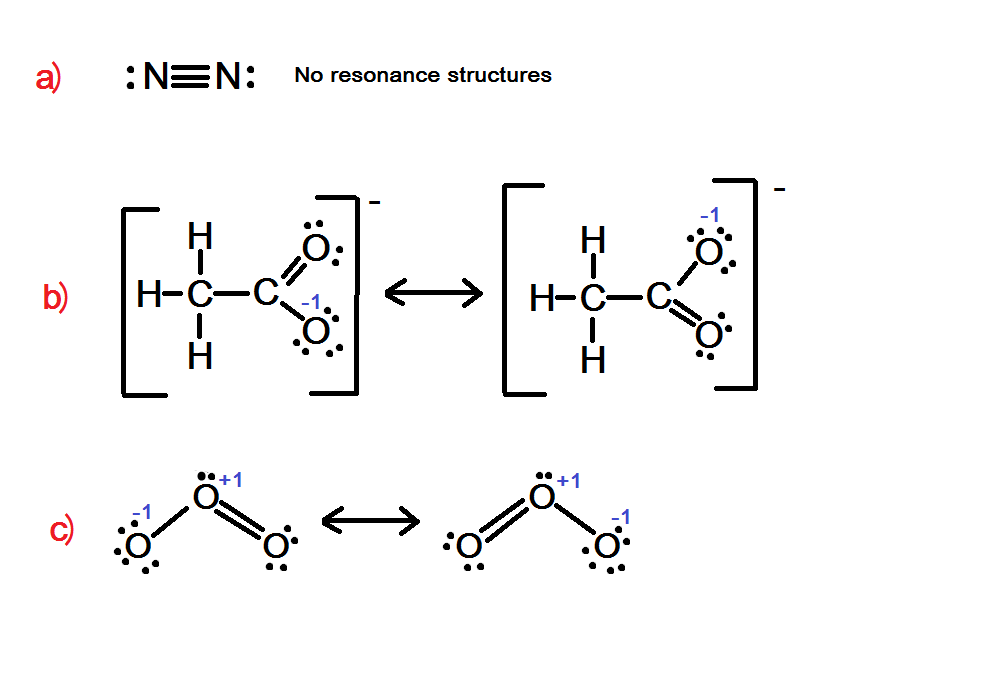

The structures are attached. Formal charges are indicated in case they are non-zero. For all atoms where the formal charge is not mentioned, it equals 0.
