Question

Q. The x-rays with λ= 100pm are scattered from a carbon target. The scattered radiation is viewed at 900. What K.E is imparted to recoiling electron?

Answer 1

Answer on Question 58652, Physics, Quantum Mechanics

Question:

The X-rays with $\lambda = 100$ pm are scattered from a carbon target. The scattered radiation is viewed at $90{}^{\circ}$ . What KE is imparted to recoiling electron?

Solution:

In this question, we are dealing with the famous Compton effect. Here's the explanation of the Compton effect:

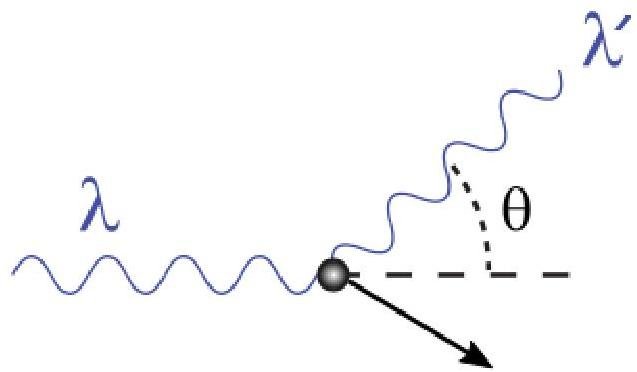

A photon of wavelength $\lambda$ comes in from left, collides with a carbon target at rest, and a new photon of wavelength $\lambda'$ emerges at an angle $\theta$ (in our case, $\theta = 90{}^{\circ}$ ). Part of the energy of the photon is transferred to the recoiling electron (the arrow in the picture indicates the direction of motion of the electron).

Let's apply the Law of Conservation of Energy:

$$E = E ^ {\prime} + K E _ {e},$$

here, $E$ is the energy of the photon before the collision with the carbon target, $E'$ is the energy of the photon after the collision with the carbon target and $KE_{e}$ is the kinetic energy imparted to recoiling electron.

Taking into account the inverse relationship between the energy of the photon and the wavelength of the light, we get:

$$\frac {h c}{\lambda} = \frac {h c}{\lambda^ {\prime}} + K E _ {e}.$$

From this formula, we can find the kinetic energy imparted to recoiling electron:

$$K E _ {e} = \frac {h c}{\lambda} - \frac {h c}{\lambda^ {\prime}} = h c \left(\frac {1}{\lambda} - \frac {1}{\lambda^ {\prime}}\right).$$

We can find $\lambda^{\prime}$ from the Compton Scattering equation:

$$\lambda^ {\prime} - \lambda = \frac {h}{m _ {e} c} (1 - \cos \theta),$$

here, $\lambda$ the initial wavelength of the photon, $\lambda^{\prime}$ is the wavelength after scattering, $\frac{h}{m_ec}$ is the Compton wavelength, and it is equal to $2.43\cdot 10^{-12}m$ , $h$ is the Planck's constant, $m_e$ is the electron rest mass, $c$ is the speed of light, $\theta$ is the scattering angle.

Therefore, from this formula we can calculate $\lambda^{\prime}$ :

$$\begin{array}{l} \lambda^ {\prime} = \lambda + \frac {h}{m _ {e} c} (1 - \cos \theta) = 1 0 0 \cdot 1 0 ^ {- 1 2} m + 2. 4 3 \cdot 1 0 ^ {- 1 2} m \cdot (1 - \cos 9 0 {}^ {\circ}) \\ = 1 0 0 \cdot 1 0 ^ {- 1 2} m + 2. 4 3 \cdot 1 0 ^ {- 1 2} m = 1 0 2. 4 3 \cdot 1 0 ^ {- 1 2} m. \\ \end{array}$$

Finally, we can calculate the kinetic energy imparted to recoiling electron:

$$\begin{array}{l} K E _ {e} = 4. 1 3 5 \cdot 1 0 ^ {- 1 5} e V \cdot s \cdot 3 \cdot 1 0 ^ {8} \frac {m}{s} \cdot \left(\frac {1}{1 0 0 \cdot 1 0 ^ {- 1 2} m} - \frac {1}{1 0 2 . 4 3 \cdot 1 0 ^ {- 1 2} m}\right) = \\ = 2 9 4. 3 e V. \\ \end{array}$$

Answer:

$$K E _ {e} = 2 9 4. 3 e V.$$
