Question #209458

Three packing crates of masses, M1 = 6 kg, M2 = 2 kg and M3 = 8 kg are connected by a light string of negligible mass that passes over the pulley as shown. Masses M1 and M3 lies on a 30o incline plane which slides down the plane. The coefficient of kinetic friction on the incline plane is 0.28. A. Draw a free body diagram of all the forces acting in the masses M1 and M2. [2 marks] B. Determine the tension in the string that connects M1 and M2.



1
Expert's answer
2021-06-22T13:33:21-0400

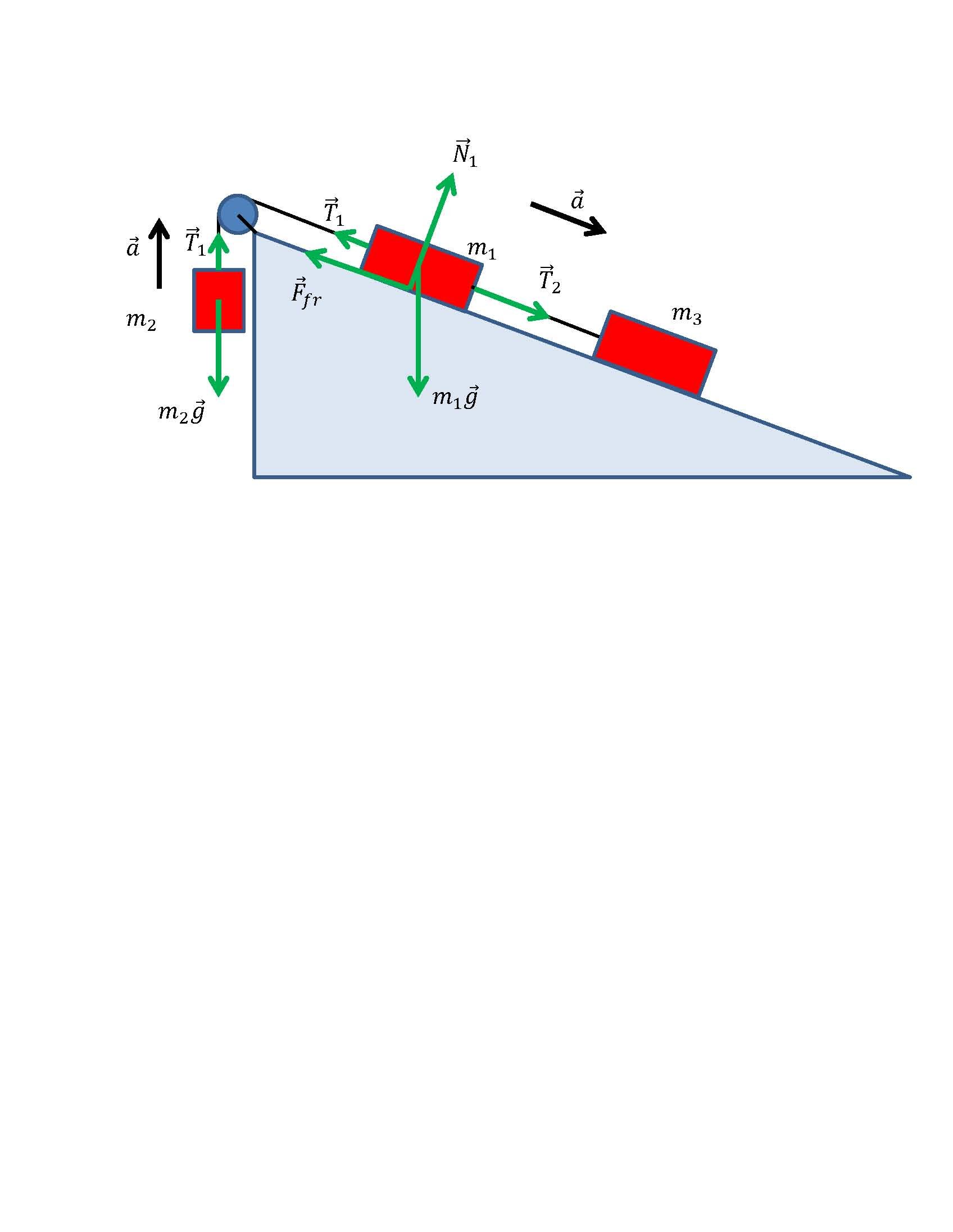

A.





B. According to Newton's second law


T1m2g=m2aT_1-m_2g=m_2a


T1+T2μm1gcos30°+m1gsin30°=m1a-T_1+T_2-\mu m_1g\cos30°+m_1g\sin30°=m_1a


T2μm3gcos30°+m3gsin30°=m3a-T_2-\mu m_3g\cos30°+m_3g\sin30°=m_3a .


So, we have


T12g=2aT_1-2g=2a


T1+T20.2869.81cos30°+69.81sin30°=6a-T_1+T_2-0.28\cdot 6\cdot9.81\cdot \cos30°+6\cdot9.81\cdot\sin30°=6a


T20.2889.81cos30°+89.81sin30°=8a-T_2-0.28\cdot8\cdot9.81\cdot\cos30°+8\cdot 9.81\cdot\sin30°=8a


Solving the system of equations we obtain that T1=21.588 (N)T_1=21.588\ (N) . Answer
