Question

Three blocks on a frictionless horizontal surface are in contact with each other . A force F is applied to applied to block A (mass m1 ).
(a)Draw a free – body diagram for each block
(b)The acceleration of the system (in terms of m1, m2, m3)

Answer 1

Question #68546, Physics / Other

Three blocks on a frictionless horizontal surface are in contact with each other. A force $\mathrm{F}$ is applied to apply to block A (mass m1).

(a)Draw a free - body diagram for each block

(b)The acceleration of the system (in terms of m1, m2, m3)

Solution

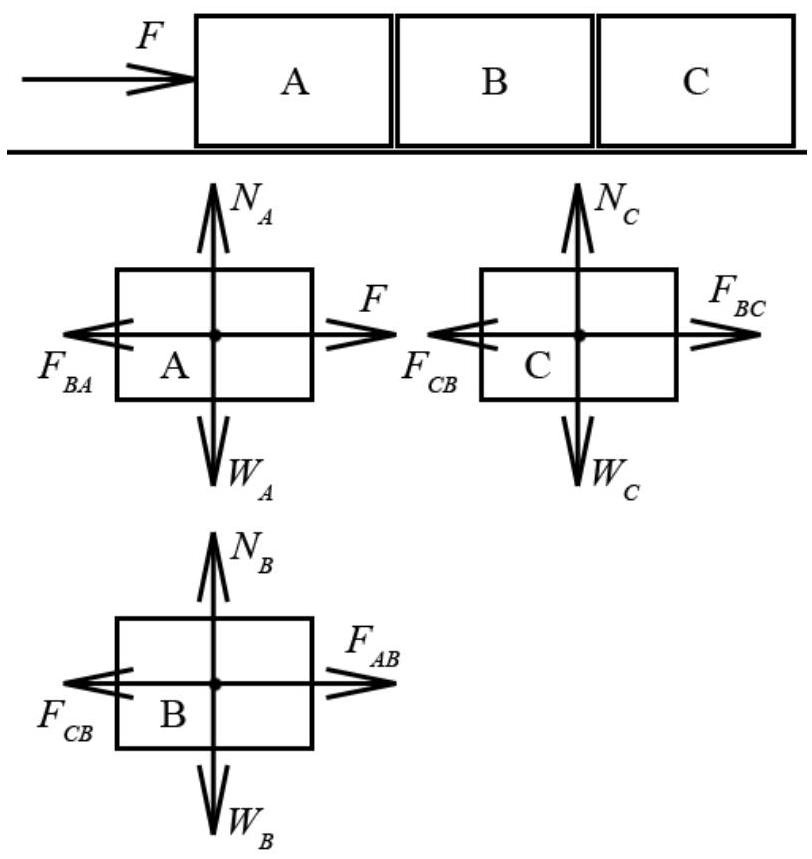

(a)

(b) $a = \frac{F}{m_1 + m_2 + m_3}$
