Answer to Question #274012 in Physics for RAFAEL

Question

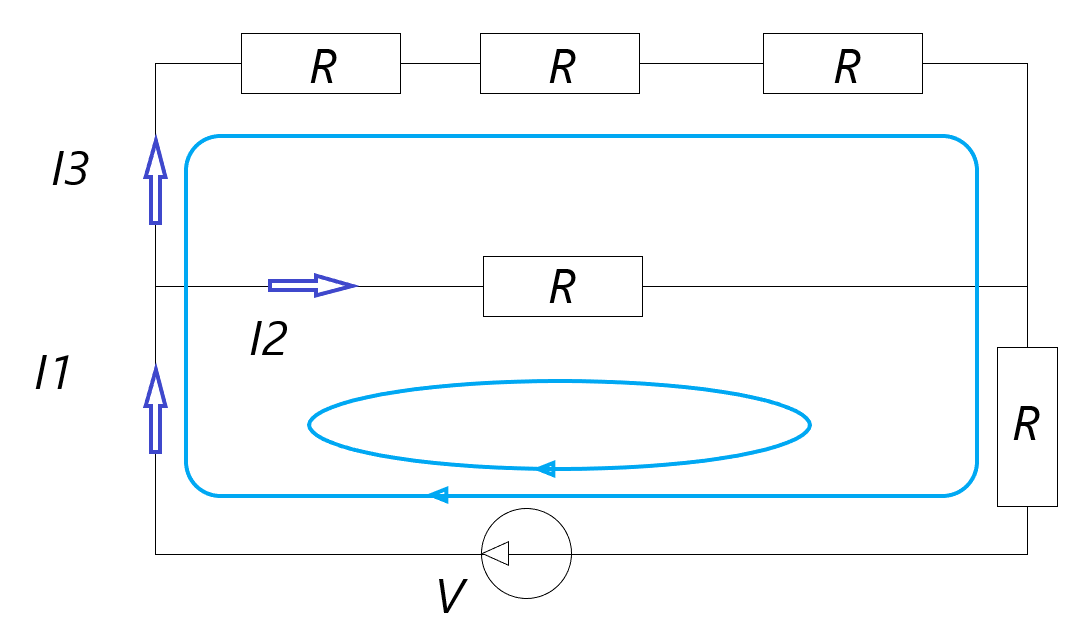

Propose a problem of a mixed circuit (minimum of 5 resistors) where you need to apply Ohm’s Law and Kirchhoff’s Law for its solution.

YOU NEED TO SOLVED

Answer 1

$$I_1=I_2+I_3,\\\space\\ V=I_1R+I_2R,\\\space\\ V=I_1R+I_3·3R,\\\space\\ I_1=6.29\text{ A},\\ I_2=4.71\text{ A},\\ I_3=1.57\text{ A}.$$
