Question

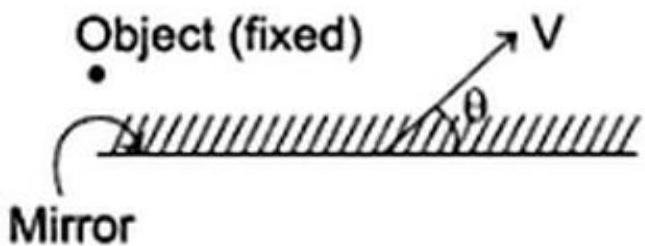

An object and a plane mirror are shown. Mirror is moved with velocity V at angle Ø. The velocity of the image.
. *
. object(fixed)
. --------------------
. Mirror
(1)2V sinø
(2)2V
(3)2V cosø

Answer 1

Answer on Question #52004-Physics-Optics

An object and a plane mirror are shown. Mirror is moved with velocity V at angle $\theta$ . The velocity of the image.

(1)2V sin $\theta$

(2)2V

(3)2V cos $\theta$

Solution

The velocity of the image is independent from the parallel component of velocity of the mirror (parallel to the surface of the mirror). Thus, we can apply result for mirror moving to the object:

$$v _ {o} = 2 V _ {\text {p a r a l l e l}}.$$

But in our case

$$V _ {p a r a l l e l} = V \sin \theta .$$

So,

$$v _ {o} = 2 \mathrm {V} \sin \theta .$$

Answer: (1)2V sin $\theta$
