Answer to Question #162609 in Optics for Ulrich

Question #162609

Draw the path of two rays, from a point on an object, passing through the optical system of a compound microscope to the final image as seen by the eye.

Expert's answer

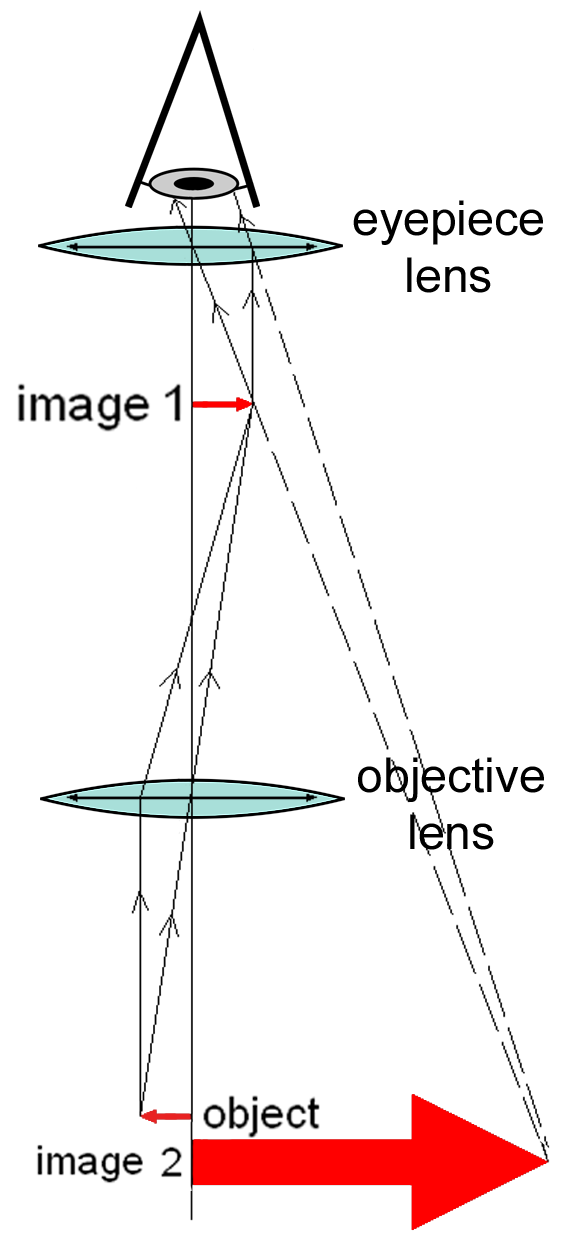

The answer to your question is provided in the image:

Learn more about our help with Assignments: Optics

Comments

No comments. Be the first!

Leave a comment
