Represent the following processes on the PV diagram isomeric isochoric isothermal cycling

Answer 1

Answer on Question #76581, Physics / Molecular Physics | Thermodynamics

Represent the following processes on the PV diagram isomeric isochoric isothermal cycling

Solution

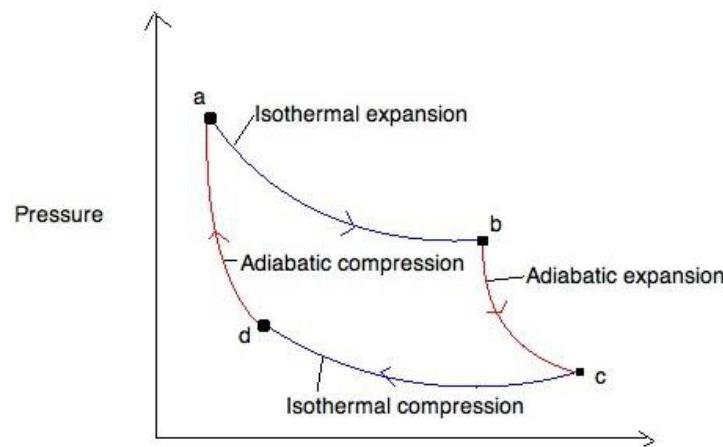

1. Isothermal process is the process at a constant temperature (T=const, $\delta T = 0$ ), on the cycle graph (A→B, C→D)

Isothermal Process

Volume

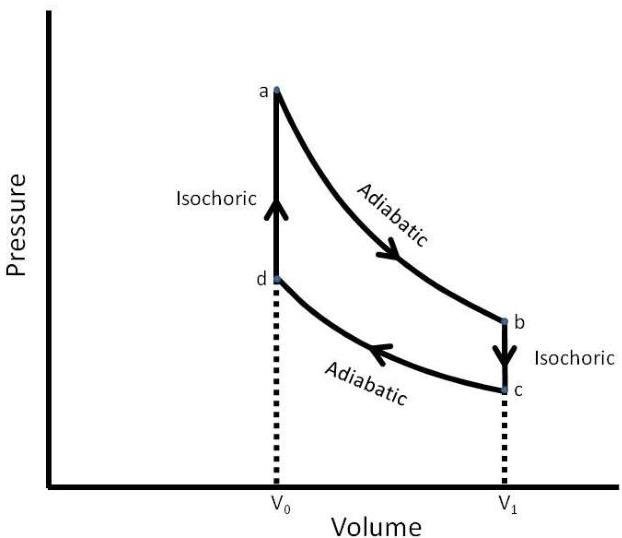

2. Isochoric process is the process at a constant volume (V=const, $\delta V = 0$ ), on the cycle graph (b→c, d→a)

Isochoric process

3. Note: it seems like isobaric process is mentioned not isomeric as usually four processes are considered when the topic thermodynamic processes is learnt: isothermal, isochoric, isobaric and adiabatic processes.

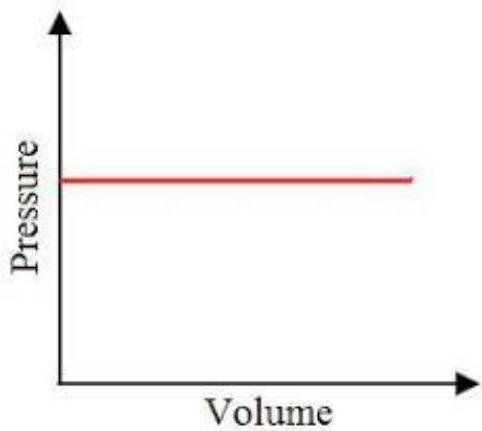

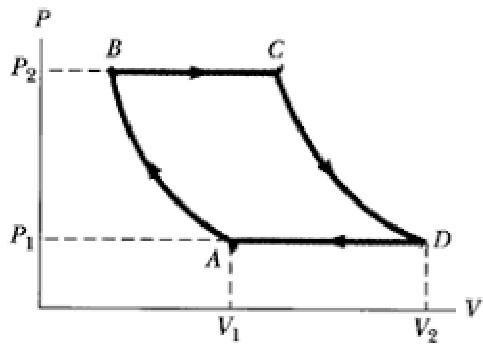

Isobaric process is the process where the pressure of the system stays constant $(P = \text{const}, \delta P = 0)$ , on the cycle graph $(B \to C, D \to A)$

Isobaric process
