Question

Draw Carnot cycle on (i) p-V, and (ii) T-S diagrams. With the help of p-V diagram

Answer 1

Answer on Question #66757-Physics-Molecular Physics-Thermodynamics

Draw Carnot cycle on (i) p-V, and (ii) T-S diagrams. With the help of p-V diagram

Solution

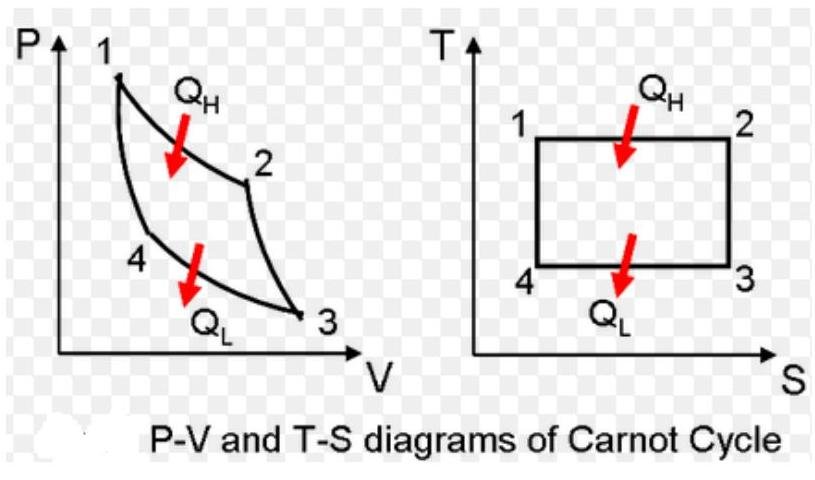

Carnot cycle is composed of four processes:

1-2. Isothermal heat addition (T=const)

2-3. Isentropic expansion (S=const)

3-4. Isothermal heat rejection (T=const)

4-1. Isentropic compression (S=const)

Answer provided by https://www.AssignmentExpert.com
