Question

5. a) Derive an expression for ground state energy of a completely degenerate FD gas. For copper, take kg101.9 and Js,1062.6,m105.83134328−−−×=×=×=emhVNto calculate Fermi energy. (6,4) b) Show that the partition function of an N-particle system is given by the expression: 2/332NNNNNmhVZZβπ== Obtain expressions for (i) heat capacity at constant volume, (ii) average pressure exerted by the gas, and (iii) Helmholtz free energy F.

Answer 1

Answer on Question #52208-Physics-Molecular Physics-Thermodynamics

a) Derive an expression for ground state energy of a completely degenerate FD gas. For copper, take data to calculate Fermi energy.

b) Show that the partition function of an N-particle system is given by the expression:

$$Z n = Z ^ {N} = \frac {V ^ {N}}{h ^ {3 N}} \left(\frac {2 \pi m}{\beta}\right) ^ {\frac {3 N}{2}}$$

Obtain expressions for (i) heat capacity at constant volume, (ii) average pressure exerted by the gas, and (iii) Helmholtz free energy F.

Solution

a) In order to find expression of ground state energy of completely degenerate Fermi-Dirac gas one has to know:

1. The density of states in terms of energy for electrons $N(E) = \sqrt{2m^3}\frac{V}{\pi^2\hbar^3}\sqrt{E} dE$, which is the number of energy levels which are between energy interval $E, E + dE$.

2. The Fermi-Dirac distribution $(E) = \frac{1}{e^{\frac{E - \mu}{\hbar V}} - 1}$, which gives the average number of fermions in state with energy $E$.

3. The Fermi energy, which is the maximum energy of occupied particles under zero temperature.

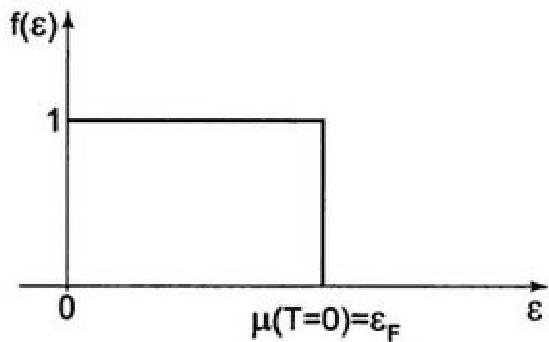

Actually, under zero temperature the Fermi-Dirac distribution changes to the following step function:

The Fermi energy is easily obtained by equaling the number of particles to its corresponding expression in terms of density of states and Fermi-Dirac distribution under zero temperature (the integral expression is also understandable from the picture above):

$N = \int_0^{E_f}dN(E) = (2m)^{\frac{3}{2}}\frac{VE_f^{\frac{3}{2}}}{3\pi^2\hbar^3}$, from where $E_{f} = \frac{\hbar^{2}}{2m} (3\pi^{2})^{\frac{2}{3}}\left(\frac{N}{V}\right)^{\frac{2}{3}}$. It is expressed in terms of N V, $\hbar$ and m.

In order to calculate the ground state energy of one particle, one has to evaluate the mean value

$\bar{E} = \int_0^\infty Ef(E)dN(E)$, which is much simpler to evaluate in case of zero temperature:

$\bar{E} = \int_0^{E_f}EdN(E) = \sqrt{2m^3}\frac{V}{\pi^2\hbar^3}\int_0^{E_f}E^{\frac{3}{2}}dE = (2m)^{\frac{3}{2}}\frac{VE_f^{\frac{5}{2}}}{5\pi^2\hbar^3} = \frac{3}{5} NE_f$ using expression for Fermi energy.

Hence, for one particle in completely degenerate ideal Fermi gas, the ground state energy is

$$E _ {0} = \bar {E} = \frac {3}{5} E _ {f}.$$

Using given numeric values, first calculate Fermi energy: $E_{f} = 4.45 \cdot 10^{-17} J$ . Hence the ground state energy is $E_{0} = \frac{3}{5} E_{f} = 2.67 \cdot 10^{-17} J$ .

b) Let us now practice calculating thermodynamic relations using the partition function by considering an example with which we are already quite familiar: i.e., an ideal monatomic gas. Consider a gas consisting of N identical monatomic molecules of mass $m$ enclosed in a container of volume $V$ . Let us denote the position and momentum vectors of the i-th molecule by $r_i$ and $p_i$ , respectively. Since the gas is ideal, there are no interatomic forces, and the total energy is simply the sum of the individual kinetic energies of the molecules:

$$E = \sum_ {i = 1} ^ {N} \frac {p _ {i} ^ {2}}{2 m}.$$

Let us treat the problem classically. In this approach, we divide up phase-space into cells of equal volume $h^f$ . Here, $f$ is the number of degrees of freedom, and $h$ is a small constant with dimensions of angular momentum which parameterizes the precision to which the positions and momenta of molecules are determined. Each cell in phase-space corresponds to a different state. The partition function is the sum of the Boltzmann factor $\exp(-\beta E_r)$ over all possible states, where $E_r$ is the energy of state $r$ . Classically, we can approximate the summation over cells in phase-space as an integration over all phase-space. Thus,

$$Z = \int \dots \int \exp (- \beta E) \frac {d ^ {3} r _ {1} \dots d ^ {3} r _ {N} d ^ {3} p _ {1} \dots d ^ {3} p _ {N}}{h ^ {3 N}}.$$

where 3N is the number of degrees of freedom of a monatomic gas containing N molecules. The above expression reduces to

$$Z = \frac {V ^ {N}}{h ^ {3 N}} \int \dots \int \exp \left(- \beta \frac {p _ {1} ^ {2}}{2 m}\right) d ^ {3} p _ {1} \dots \exp \left(- \beta \frac {p _ {N} ^ {2}}{2 m}\right) d ^ {3} p _ {N}.$$

Note that the integral over the coordinates of a given molecule simply yields the volume of the container, $V$ , since the energy $E$ is independent of the locations of the molecules in an ideal gas. There are $N$ such integrals, so we obtain the factor $V^N$ in the above expression. Note, also, that each of the integrals over the molecular momenta is identical: they differ only by irrelevant dummy variables of integration. It follows that the partition function $Z$ of the gas is made up of the product of $N$ identical factors: i.e.,

$$Z = \zeta^ {N},$$

where

$$\zeta = \frac {V}{h ^ {3}} \int \exp \left(- \beta \frac {p ^ {2}}{2 m}\right) d ^ {3} p.$$

The integral is easily evaluated:

$$\begin{array}{l} \int \exp \left(- \beta \frac {p ^ {2}}{2 m}\right) d ^ {3} p = \int_ {- \infty} ^ {\infty} \exp \left(- \beta \frac {p _ {x} ^ {2}}{2 m}\right) d p _ {x} \cdot \int_ {- \infty} ^ {\infty} \exp \left(- \beta \frac {p _ {y} ^ {2}}{2 m}\right) d p _ {y} \cdot \int_ {- \infty} ^ {\infty} \exp \left(- \beta \frac {p _ {z} ^ {2}}{2 m}\right) d p _ {z} \\ = \left(\frac {2 \pi m}{\beta}\right) ^ {\frac {3}{2}}. \\ \end{array}$$

Thus,

$$Z = \frac {V ^ {N}}{h ^ {3 N}} \left(\frac {2 \pi m}{\beta}\right) ^ {\frac {3 N}{2}}.$$

(i)

$$C _ {V} = \left(\frac {\partial \bar {E}}{\partial T}\right) _ {V}.$$ $$\bar {E} = - \frac {\partial \ln Z}{\partial \beta} = \frac {\frac {3}{2} N}{\beta} = \frac {3}{2} N k T.$$ $$C _ {V} = \frac {3}{2} N k.$$

(ii)

$$\bar {p} = \frac {1}{\beta} \frac {\partial \ln Z}{\partial V} = \frac {1}{\beta} \frac {N}{V} = \frac {N k T}{V}.$$

(iii)

$$F = - k T \ln Z = - N k T \ln \left(\frac {V}{h ^ {3}} (2 \pi m k T) ^ {\frac {3}{2}}\right).$$
