Question

A horizontal rod with a mass of 10kg and length 12m hinged to a wall at one end and supported by a cable which make an angle of 30deg with the rod at its other end. Calculate the tension in the cable and force exerted by hinge .Draw the diagram.

Answer 1

Question #74248, Physics / Mechanics | Relativity

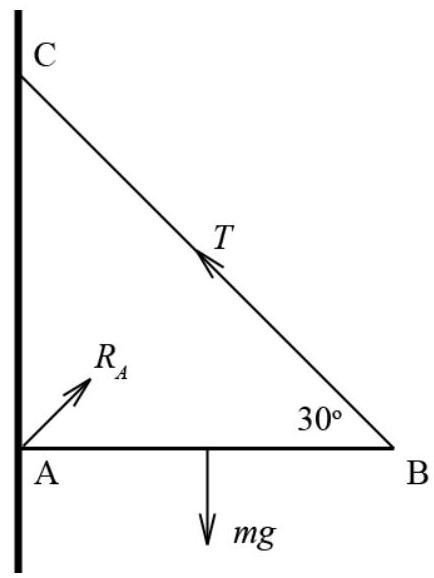

A horizontal rod with a mass of $10\mathrm{kg}$ and length $12\mathrm{m}$ hinged to a wall at one end and supported by a cable which make an angle of 30deg with the rod at its other end. Calculate the tension in the cable and force exerted by hinge. Draw the diagram.

Solution

$\sum M_{A} = 0$

$$T \sin 3 0 {}^ {\circ} \times (A B) - m g \times \frac {A B}{2} = 0;$$ $$T = \frac {m g}{2 \sin 3 0 {}^ {\circ}} = \frac {1 0 \times 9 . 8 1}{2 \sin 3 0 {}^ {\circ}} = 9 8. 1 \mathrm {N}$$ $$\sum F _ {x} = 0;$$ $$R _ {A x} - T \cos 3 0 {}^ {\circ} = 0;$$ $$R _ {A x} = T \cos 3 0 {}^ {\circ} = 9 8. 1 \times \cos 3 0 {}^ {\circ} = 8 5. 0 \mathrm {N}$$ $$\sum F _ {y} = 0;$$ $$R _ {A y} + T \sin 3 0 {}^ {\circ} - m g = 0;$$ $$R _ {A y} = m g - T \sin 3 0 {}^ {\circ} = 9 8. 1 - 9 8. 1 \times \sin 3 0 {}^ {\circ} = 4 9. 0 \mathrm {N}$$ $$R _ {A} = \sqrt {R _ {A x} ^ {2} + R _ {A y} ^ {2}} = \sqrt {\frac {W ^ {2}}{4 \tan^ {2} 6 0 {}^ {\circ}} + \frac {W ^ {2}}{4}} = \sqrt {8 5 . 0 ^ {2} + 4 9 . 0 ^ {2}} = 9 8. 1 \mathrm {N}$$

Answer: $T = 98.1 \, \text{N}; R_A = 98.1 \, \text{N}$.

Answer provided by https://www.AssignmentExpert.com
