Question

A box of mass 50 kg is placed on an inclined plane. When the angle of the plane is
increased to 30º, the box begins to slide downwards. Calculate the coefficient of static
friction between the plane and the box. Draw the free body diagram.

Answer 1

Answer on Question #65906-Mechanics - Relativity

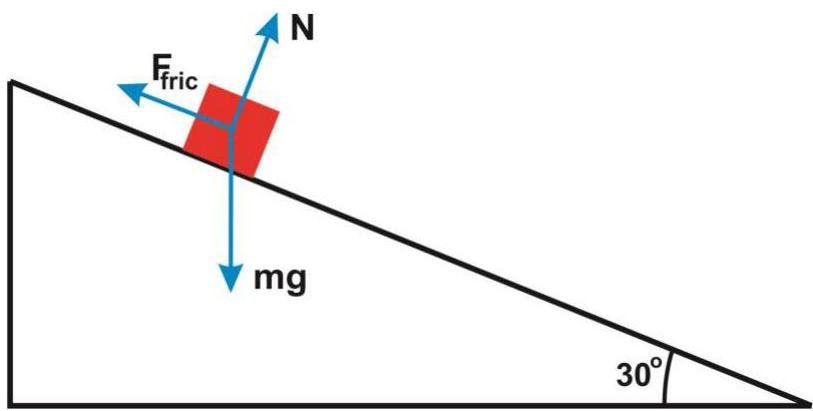

A box of mass $50\mathrm{kg}$ is placed on an inclined plane. When the angle of the plane is increased to $30{}^{\circ}$ , the box begins to slide downwards. Calculate the coefficient of static friction between the plane and the box. Draw the free body diagram.

Solution

$$F _ {\mathrm {f r i c}} = m g \sin \alpha , \qquad N = m g \cos \alpha , \qquad F _ {\mathrm {f r i c}} = \mu N.$$ $$\mu = \frac {F _ {\mathrm {f r i c}}}{N} = \frac {m g \sin \alpha}{m g \cos \alpha} = \tan \alpha = \tan 3 0 {}^ {\circ} = 0. 5 8$$

Answer $\mu = 0.58$
