Question

Water is shooting at the same speed out of the three tubes placed on the ground at different angles of 60°, 45°, and 30° to the horizon. Find the ratio of the greatest heights the streams can reach and the ratio of distances from the mouths of the tubes the points where the streams hit the ground.

Answer 1

Answer on Question #42707 – Physics – Mechanics | Kinematics | Dynamics

Question.

Water is shooting at the same speed out of the three tubes placed on the ground at different angles of $60{}^{\circ}$ , $45{}^{\circ}$ , and $30{}^{\circ}$ to the horizon. Find the ratio of the greatest heights the streams can reach and the ratio of distances from the mouths of the tubes the points where the streams hit the ground.

$v_{0_1} = v_{0_2} = v_{0_3} = v_0$ all streams have the same velocity $v_0$

$\alpha_{1} = 60{}^{\circ}$ is the angle to the horizon of tube 1

$\alpha_{2} = 45{}^{\circ}$ is the angle to the horizon of tube 2

$\alpha_{3} = 30{}^{\circ}$ is the angle to the horizon of tube 3

$h_{\max 1}: h_{\max 2}: h_{\max 3} = ?$ is the ratio of the greatest heights

$l_{\max 1}: l_{\max 2}: l_{\max 3} = ?$ is the ratio of distances where the streams hit the ground

Solution.

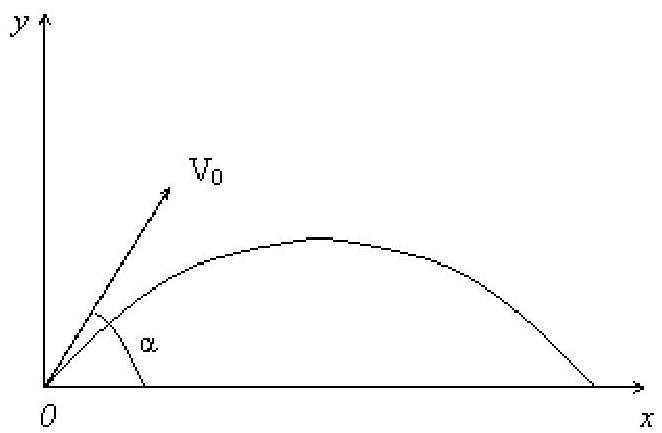

Fig. 1. Motion of body thrown at angle to the horizon.

Problem of the body thrown at an angle to the horizon is known problem and we can see the following:

$\vec{F} = m\vec{a}$ is the Newton's second law

$$\begin{array}{l} a_{x} = 0; \quad a_{y} = g \\ v_{x} = v_{0} \cos \alpha; \quad v_{y} = v_{0} - g t = v_{0} - g \sin \alpha \\ x = v_{0} t \cos \alpha; \quad y = v_{0} t \sin \alpha - \frac{1}{2} g t^{2} \end{array}$$

Let define the flight time. When the stream hit the ground $y = 0$. Therefore:

$$0 = v_{0} t_{all} \sin \alpha - \frac{1}{2} g t_{all}^{2} \rightarrow t_{all} = \frac{2 v_{0} \sin \alpha}{g}$$

Graph of flight is symmetric, so the top point (the greatest height) corresponds to the time:

$$t_{0} = \frac{t_{all}}{2} = \frac{v_{0} \sin \alpha}{g}$$

Substitute this value of time $t_0$ into the formula for $y$:

$$y(t_{0}) = y_{max} = h_{max} = v_{0} t_{0} \sin \alpha - \frac{1}{2} g t_{0}^{2} = \frac{v_{0}^{2} \sin^{2} \alpha}{2 g}$$

So,

$$h_{\max 1}: h_{\max 2}: h_{\max 3} = \sin^{2} \alpha_{1}: \sin^{2} \alpha_{2}: \sin^{2} \alpha_{3}$$

Calculate:

$$\begin{array}{l} \sin \alpha_{1} = \frac{\sqrt{3}}{2} \rightarrow \sin^{2} \alpha_{1} = \frac{3}{4} \\ \sin \alpha_{2} = \frac{1}{\sqrt{2}} \rightarrow \sin^{2} \alpha_{2} = \frac{1}{2} = \frac{2}{4} \\ \sin \alpha_{3} = \frac{1}{2} \rightarrow \sin^{2} \alpha_{3} = \frac{1}{4} \\ h_{\max 1}: h_{\max 2}: h_{\max 3} = \sin^{2} \alpha_{1}: \sin^{2} \alpha_{2}: \sin^{2} \alpha_{3} = 3: 2: 1 \end{array}$$

We understand that it is correct. The greater the angle, the greater the maximum height.

Now let find the maximum length:

$$l_{max} = x_{max} = x(t_{all}) = v_{0} t_{all} \cos \alpha = \frac{2 v_{0}^{2} \cos \alpha \sin \alpha}{g} = \frac{v_{0}^{2} \sin 2 \alpha}{g}$$

So,

$$l_{\max 1}: l_{\max 2}: l_{\max 3} = \sin 2 \alpha_{1}: \sin 2 \alpha_{2}: \sin 2 \alpha_{3}$$

Calculate:

$$\sin 2 \alpha_ {1} = \sin 1 2 0 {}^ {\circ} = \sin 6 0 {}^ {\circ} = \sin \alpha_ {1} = \frac {\sqrt {3}}{2}$$ $$\sin 2 \alpha_ {2} = \sin 9 0 {}^ {\circ} = 1$$ $$\sin 2 \alpha_ {3} = \sin 6 0 {}^ {\circ} = \sin \alpha_ {1} = \frac {\sqrt {3}}{2}$$ $$l _ {\max 1} \colon l _ {\max 2} \colon l _ {\max 3} = \sin 2 \alpha_ {1} \colon \sin 2 \alpha_ {2} \colon \sin 2 \alpha_ {3} = \frac {\sqrt {3}}{2} \colon 1: \frac {\sqrt {3}}{2}$$

He will fly the longest distance at angle $45{}^{\circ}$ .

**Answer.**

$$h _ {\max 1} \colon h _ {\max 2} \colon h _ {\max 3} = \sin^ {2} \alpha_ {1} \colon \sin^ {2} \alpha_ {2} \colon \sin^ {2} \alpha_ {3} = 3: 2: 1$$ $$l _ {\max 1} \colon l _ {\max 2} \colon l _ {\max 3} = \sin 2 \alpha_ {1} \colon \sin 2 \alpha_ {2} \colon \sin 2 \alpha_ {3} = \frac {\sqrt {3}}{2} \colon 1: \frac {\sqrt {3}}{2}$$
