Question

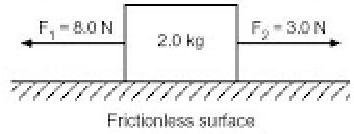

Two forces are applied to a 2.0-kilogram block on a frictionless horizontal surface, as
shown in the diagram below. The acceleration of the block is

http://www.webassign.net/regents/rphys_jun00-12.gif

(a) 1.5 m/s2 to the right
(b) 2.5 m/s2 to the left
(c) 2.5 m/s2 to the right
(d) 4.0 m/s2 to the left
(e) non of the above

Answer 1

Two forces are applied to a 2.0-kilogram block on a frictionless horizontal surface, as

shown in the diagram below. The acceleration of the block is http://www.webassign.net/regents/rphys_jun00-12.gif

(a) $1.5\mathrm{m / s2}$ to the right

(b) $2.5 \mathrm{~m} / \mathrm{s} 2$ to the left

(c) $2.5 \mathrm{~m} / \mathrm{s} 2$ to the right

(d) $4.0 \mathrm{~m} / \mathrm{s} 2$ to the left

(e) non of the above

Solution

Total force:

$$\overrightarrow {F _ {t o t a l}} = \Sigma \vec {F}$$

Take left as positive direction:

$$F _ {t o t a l} = F _ {1} - F _ {2} = 8 - 3 = 5 N$$

According to the Second Newton's law:

$$F = m * a$$ $$a = \frac {F}{m} = \frac {5}{2} = 2. 5 m / s ^ {2}$$

Answer: (b) $2.5 \, \text{m/s}^2$ to the left
