Explanations & Calculations

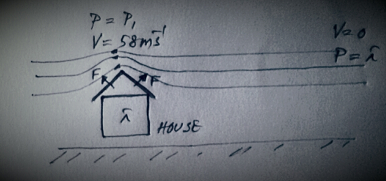

- Refer to the attached figure to get follow the explanation better
- Considering streamlines from just above the roof area and a location farther outside from the roof height & applying Bernoulli's principal is the way to solve these kind of problems.
- As the streamlines get closer & compact above the roof velocity increases & the pressure decreases.
- Compared to the pressure of still air inside the house (as well as the farther location already chosen) this pressure is less which generates a pressure difference across the roof thereby imposing a force on it.
- When this force exceeds the limits, the roof is flown away.
- Applying the equation to a selected streamline measured from the ground level,
P1+2ρv12+ρgh1π+0+ρgHπ−P=P2+2ρv22+ρgh2=P1+2ρv2+ρgH=2ρv2=248kgm−3×(58ms−1)2=80736Pa
- This is the pressure difference between the rooftop & the distance location but this is approximately the same pressure across the roof.
- Therefore, force on the roof can be calculated as follows,
F=ΔP.A=80736Nm−2×212m2⋯(Pa=Nm−2=1.712×107N
