Question #317945

Given that C₁=10.0F, C₂=5.0F, and C3=4.0F, find the total capacitance for each connection shown.


1
Expert's answer
2022-03-30T13:51:20-0400

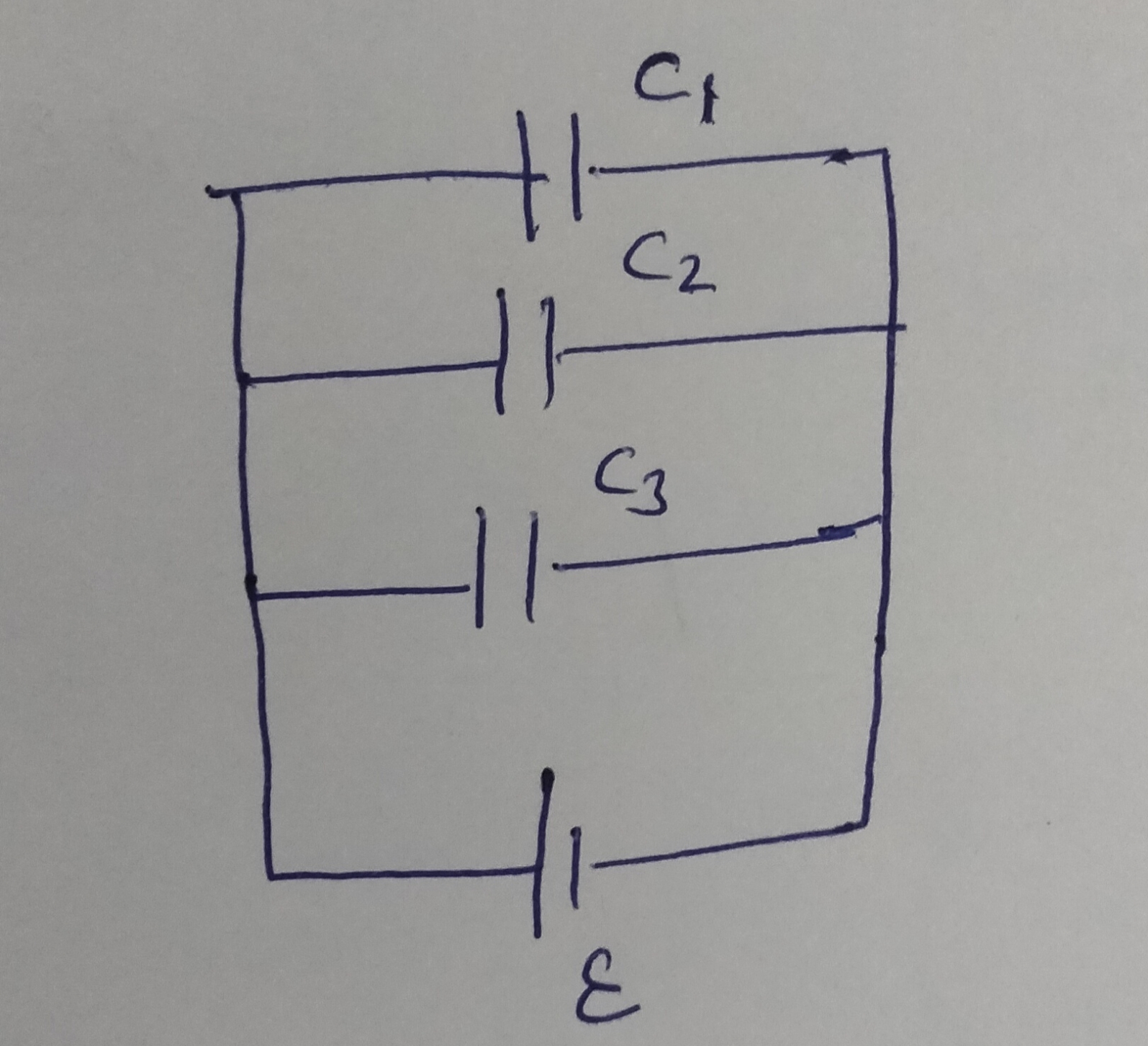

Parrallel combination



Ceq=C1+C2+C3=(10+5+4)μF=19μFC_{eq}=C_1+C_2+C_3=(10+5+4)\mu F=19\mu F

Series combination

1Ceq=1C1+1C2+1C3\frac{1}{C_{eq}}=\frac{1}{C_1}+\frac{1}{C_2}+\frac{1}{C_3}

1Ceq=110+15+14=10+20+25100\frac{1}{C_{eq}}=\frac{1}{10}+\frac{1}{5}+\frac{1}{4}=\frac{10+20+25}{100}

Ceq=10055μFC_{eq}=\frac{100}{55} \mu F

Ceq=1.81μFC_{eq}=1.81\mu F
