Answer to Question #275769 in Electric Circuits for Shivank

Question #275769

Current through branch a b

1
Expert's answer
2021-12-06T16:05:32-0500

Kindly note:


The information given in the question is not sufficient to solve the question.


Adjusting the conditions of the question to:

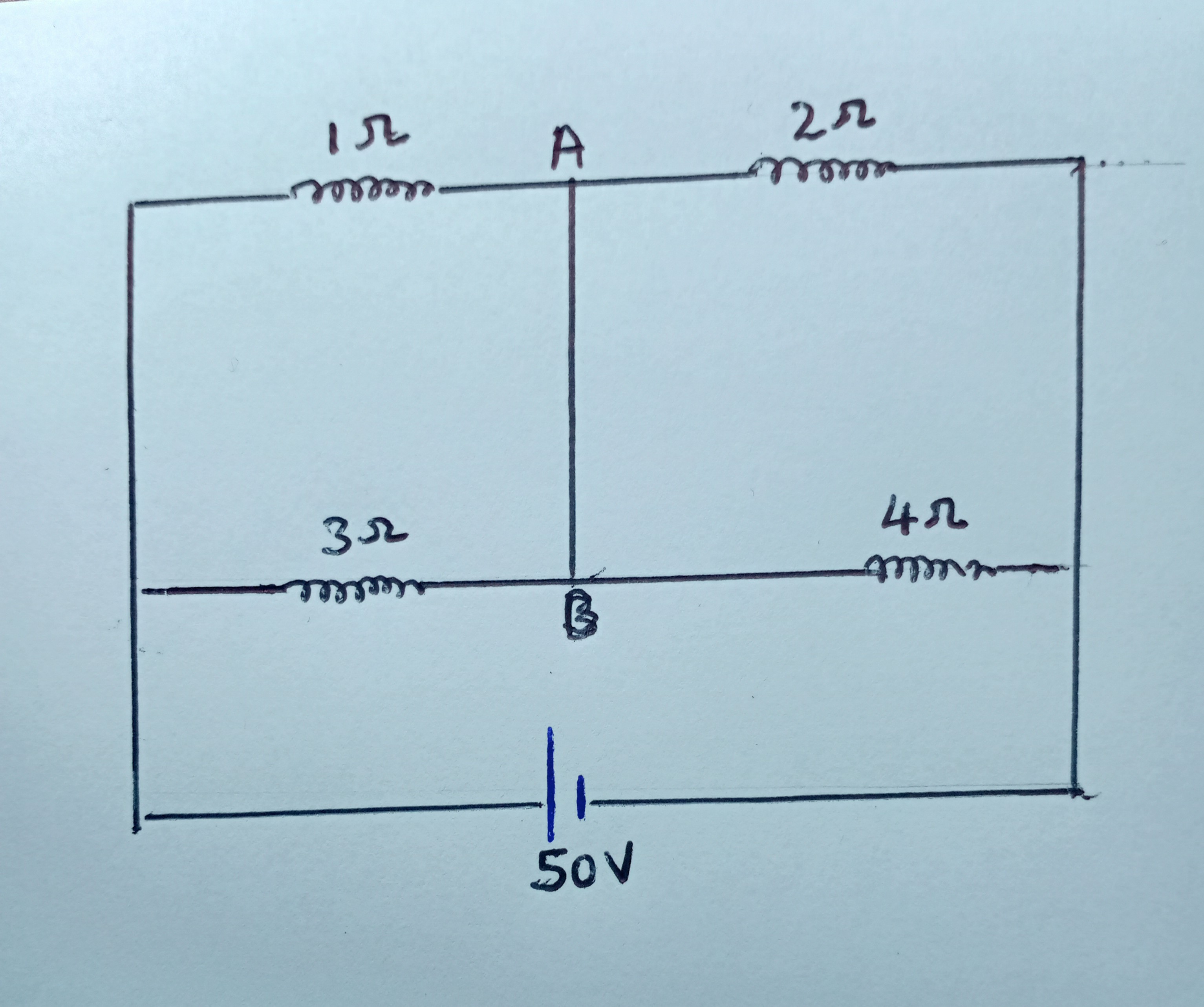

Find the current through the branch AB in the circuit diagram below.






Solution:





In loop XYBA:

3I21I1=0I1=3I23I_2-1I_1=0\\I_1=3I_2

In loop WZBA

4(I2+Iab)2(I1Iab)=04(I_2+I_{ab})-2(I_1-I_{ab})=0

6Iab=2I14I26Iab=2(3I2)4I2I2=3Iab6I_{ab}=2I_1-4I_2 \\6I_{ab}=2(3I_2)-4I_2 \\I_2=3I_{ab}


In loop ZQPY

50[3I2+4(I2+Iab)]=050=7I2+4Iab50-[3I_2+4(I_2+I_{ab})]=0\\50=7I_2+4I_{ab}

=7(3Iab)+4Iab=25Iab=7(3I_{ab})+4I_{ab} \\=25I_{ab}


Iab=2AI_{ab}=2A
